Key Takeaway
- RTC modules help maintain accurate time without the need for the internet.
- Setting up an RTC is easy and only needs a few steps.
- Accurate timestamps are important for many projects and data logging.
Using an RTC (Real-Time Clock) for logging on a Raspberry Pi can greatly assist in keeping accurate track of time, especially when there’s no internet connection. An RTC helps the Raspberry Pi maintain the correct time consistently, ensuring reliable timestamps for logging. This article details the setup of an RTC module and highlights its significance. By understanding this simple process, users can enhance their Raspberry Pi projects with precise timekeeping. Keep reading to discover how to make your Raspberry Pi record the right time and unlock its full potential.
Overview of RTC Modules

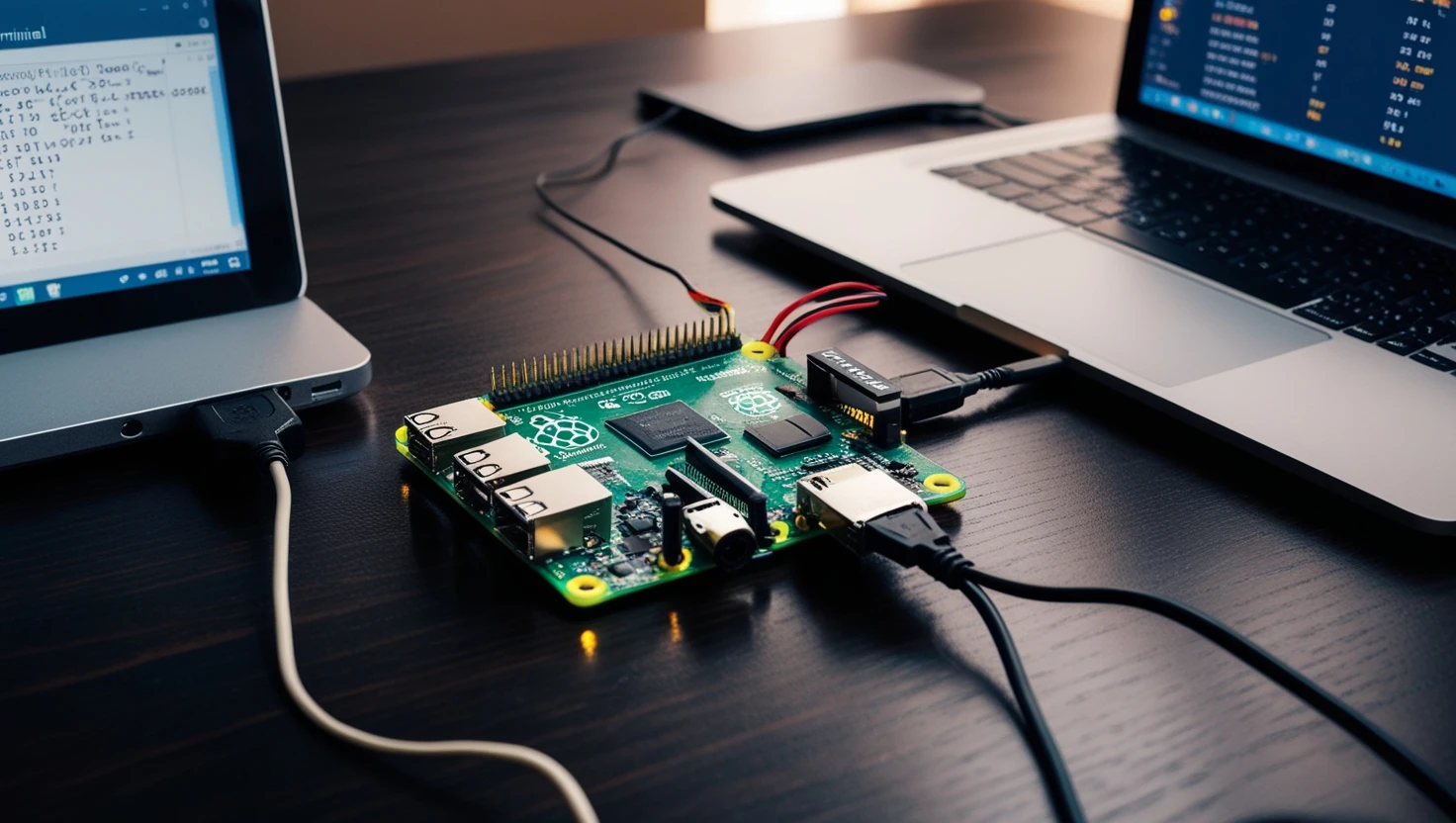

Credits: Dev Neil A
Real-Time Clock (RTC) modules are handy little devices that help track time accurately. They really shine in projects that need time-stamped data, especially when there’s no internet connection. Two popular RTC modules are:
- DS1307: This module is a favorite among hobbyists due to its affordability. The DS1307 is user-friendly and works well in many projects.
- DS3231: This module offers a bit more in terms of accuracy and performance. It is designed to work in various temperatures, making it versatile. Plus, the DS3231 comes with a built-in temperature sensor that boosts its timekeeping reliability.
Advantages of Using RTC
RTC modules come with several benefits. A key feature is their ability to keep time even when the Raspberry Pi is powered off. Thanks to a small battery, they can continue running, which is crucial for projects that log data over extended periods.
Another big plus is that RTC modules don’t rely on an internet connection. This is perfect for outdoor projects or places where online access is spotty. With an RTC, time can be recorded accurately, ensuring data remains trustworthy. This is especially important in applications like environmental monitoring or remote sensors, where knowing the precise time of data collection matters.
Setting Up the RTC Module
Setting up an RTC module with a Raspberry Pi is easy and involves a few simple steps to get everything running smoothly.
Hardware Requirements
First, an RTC module is needed. Users can choose between options like the DS1307 or DS3231 based on their needs. Next, some jumper wires are essential for connecting the RTC module to the Raspberry Pi. Having these wires on hand will make the setup go without a hitch.
Connection Diagram
Connecting the RTC module to the Raspberry Pi is straightforward. Here’s a quick guide for making the connections:
| RTC Module | Raspberry Pi |
| SCL | GPIO 3 (Pin 5) |
| SDA | GPIO 2 (Pin 3) |
| VCC | 5V (Pin 2) |
| GND | GND (Pin 6) |
It’s important to connect each wire to the correct pins to ensure smooth communication between the RTC module and the Raspberry Pi.
Software Setup
After the hardware is connected, it’s time for the software setup. The first step is updating the system and installing the necessary I2C tools. (1) Users can do this by opening the terminal and entering:
sudo apt-get update && sudo apt-get upgrade –yes
sudo apt-get install i2c-tools
Next, the I2C interface needs enabling. This can be done with the command sudo raspi-config and navigating to “Advanced Options” to enable I2C.
After that, the RTC module needs to be loaded. Users should edit a file called modules by typing the following command in the terminal:
sudo nano /etc/modules
Then, they can add these lines to the file:
i2c-bcm2708
i2c-dev
rtc-ds1307 # or rtc-ds3231 if using DS3231
Once those changes are made, rebooting the Raspberry Pi will allow the new settings to take effect.
To check if the RTC is connected properly, the command below can be used:
i2cdetect -y 1
This command will let users see if the RTC module is detected. If everything is set correctly, the RTC should be listed.
Next, setting the time on the RTC is essential, ensuring it has the correct time before logging data. Users can set the time with this command:
sudo hwclock –set –date=”$(date “+%m/%d/%y %H:%M:%S”)”
Finally, to keep the system time in sync with the RTC every time the Raspberry Pi starts, users need to edit another file called /etc/rc.local. They should add the following lines before exit 0:
echo ds1307 0x68 > /sys/class/i2c-adapter/i2c-1/new_device
hwclock –hctosys
By following these steps, users will have the RTC module fully set up and ready to work with their Raspberry Pi.
Logging Data with RTC
Now that the RTC is set up, it can be used to log data effectively. (2) This is particularly useful for projects that require tracking when data is collected. Using Python simplifies this task. Below is a sample code that demonstrates how to log data with timestamps:
import os
import time
from datetime import datetime
# File path for logging data
file_path = “/home/pi/data_log.csv”
# Open file in append mode, create if not exists
with open(file_path, “a”) as file:
# Write header if file is empty
if os.stat(file_path).st_size == 0:
file.write(“Time,Sensor1,Sensor2\n”)
while True:
# Get current time and sensor readings (dummy values here)
now = datetime.now().strftime(“%Y-%m-%d %H:%M:%S”)
sensor1 = 42 # Replace with actual sensor reading logic
sensor2 = 36 # Replace with actual sensor reading logic
# Write data to file
file.write(f”{now},{sensor1},{sensor2}\n”)
file.flush() # Ensure data is written immediately
time.sleep(5) # Log every 5 seconds
Explanation of Code Functionality
This code is built to log data continuously. It starts by opening a file where the collected data will be stored. If the file doesn’t exist, the code creates one. The first thing it does is check if the file is empty and, if so, it writes a header with the titles “Time,” “Sensor1,” and “Sensor2.” This makes it easier to understand the data later on.
Then, the code enters a loop. Every five seconds, it retrieves the current time and logs sample sensor readings. The time is formatted for clarity, showing the year, month, day, hour, minute, and second.
The sensor values currently are placeholders, but users can easily swap them out for actual readings from their connected sensors. Once the information is gathered, it writes it to the file. The flush() method ensures that the data is saved immediately, minimizing the risk of losing any information if the program stops unexpectedly. This approach ensures that the logging process is both dependable and efficient.
General Functionality
RTC modules, like the DS1307 and DS3231, are essential for keeping time accurately. They can maintain the correct time even during power outages. This means that when the Raspberry Pi restarts, it can still log data with the right timestamps.
These RTC modules come with a small battery that keeps them running even when the power is off. This battery can last around six months. This feature is particularly helpful for projects that need to function in remote areas without constant power or internet access.
With an RTC module, users can be confident that their data is recorded accurately. This is crucial for applications like weather monitoring, home automation, or any project that depends on precise timestamps. The ability to log data correctly makes these modules valuable across many different scenarios.
Benefits for Logging
Using an RTC module for logging data offers several important advantages.
- Accurate Timestamps: One of the key benefits of an RTC is its ability to provide accurate timestamps for data logs. Each recorded piece of information is marked with the exact time it was captured. This accuracy is vital for many projects, especially those that monitor the environment. For instance, when tracking temperature or humidity, knowing exactly when each measurement was taken helps analyze trends over time. Users can observe how conditions shift throughout the day or week.
- Offline Functionality: RTC modules shine in outdoor projects where internet access is limited or unavailable. In such cases, an RTC ensures all logs have the correct timestamps, regardless of external conditions. This proves especially useful for remote sensors or devices placed in areas with unreliable internet. With an RTC, users can gather crucial data without the stress of losing track of time. They can rely on the accuracy of their logs, ready for analysis whenever needed.
- Energy Efficiency: Another significant benefit of using an RTC is energy efficiency. The RTC enables the Raspberry Pi to sleep and wake up at scheduled times for data logging. This feature is particularly helpful for battery-powered projects. By allowing the Raspberry Pi to enter a low-power state, users can greatly extend battery life. This is especially critical for applications like remote monitoring or outdoor sensors, where frequent battery changes can be challenging. The RTC helps conserve energy while still ensuring data is collected at the right moments.
Applications
RTC modules have a wide range of applications that make them valuable in various projects.
- Security and Wildlife Cameras: One of the most common uses for RTCs is in security and wildlife cameras. An RTC can wake the Raspberry Pi when it detects movement, allowing the camera to capture pictures or videos only when something is happening. This not only saves power but also ensures that key moments are recorded. For wildlife monitoring, this means documenting important animal behavior without wasting resources. In security systems, it provides a way to record only when needed, saving valuable storage space.
- Fleet Synchronization: RTC modules also play a crucial role in fleet synchronization. In settings like factories or scientific research, multiple Raspberry Pis can use RTCs to keep their clocks in sync. This synchronization is important for ensuring that all devices are recording data at the same time. When analyzing data from several devices, having synchronized timestamps simplifies comparisons and trend analysis. This makes it easier for users to assess how different sensors or devices are performing in relation to one another.
- Scheduled Tasks: Another practical application of RTCs is in scheduling tasks. They can trigger alarms or wake-up signals at specific times, making automation simple without the need for constant supervision. For example, a Raspberry Pi can be set to wake up at certain times to turn on lights, start motors, or collect data. This automation helps manage various processes, whether in smart homes or industrial settings. Users can depend on the RTC to handle timing tasks efficiently and accurately.
Software Integration
- Linux Compatibility: RTC modules are designed to work seamlessly with Linux systems. This compatibility is crucial because it allows the RTC driver to function like a standard clock. When set up correctly, the RTC keeps the right time even when the Raspberry Pi is turned off or disconnected from the internet. This ensures that system logs and scheduled tasks have accurate timestamps. Having the right time is vital for many applications, such as data logging and automation. If there’s a power outage, the RTC will remember the correct time thanks to its battery. As a result, when the Raspberry Pi restarts, it can continue logging data with accurate timestamps immediately. Users can trust this consistent timekeeping, adding reliability to their projects.
- Configuration Steps: Setting up an RTC module involves a few straightforward steps. First, users need to enable I2C communication on the Raspberry Pi. This allows the Raspberry Pi to communicate with the RTC module. Next, they must install the necessary software tools, which can be done using simple commands in the terminal. These tools help the Raspberry Pi recognize the RTC module when it’s connected.
After that, users need to tweak a few system files to ensure everything runs smoothly. This includes editing files that control modules and device settings. By adding specific lines in these files, users instruct the Raspberry Pi to recognize the RTC module and load its driver upon startup. Once all the changes are made, rebooting the Raspberry Pi applies the new settings. After rebooting, it’s essential to check that the RTC is connected properly and functioning as expected. A simple command can be used to verify if the RTC is detected. By following these steps, users can integrate the RTC module smoothly with the Raspberry Pi, allowing for accurate timekeeping and effective data logging.
FAQs
How do I connect an RTC module like the DS3231 or PCF8523 to my Raspberry Pi for logging purposes?
To connect an rtc module for logging, you’ll need to use the i2c bus and interface on your Raspberry Pi. This involves connecting the rtc device to the gpio pins and enabling the i2c dev and rtc dev kernel modules using sudo modprobe.
What are the key benefits of using an RTC module for logging on my Raspberry Pi?
An RTC chip like the DS3231 or PCF8523 provides a hardware-based real time clock that can keep accurate time even when your Pi loses power or an internet connection. This ensures your logged data has the correct timestamp, unlike relying on the system time alone or using a fake hwclock.
How do I verify my Raspberry Pi’s RTC module is properly connected and functioning?
After connecting the rtc module, use sudo i2cdetect to ensure the i2c interface is working. You can also check the rtc device using the i2c tools. If everything is set up correctly, you should be able to read the current time from the hardware clock with sudo hwclock.
What’s the process for setting the system time on my Raspberry Pi using the RTC module?
If the time on your Raspberry Pi is not correct, you can synchronize it with the hardware clock from your connected rtc module. This involves using sudo hwclock to set the system time, then ensuring the time is correct going forward by configuring the rtc kernel module.
How can I make my Raspberry Pi automatically set the system time from the RTC module on boot?
To automatically set the system time on boot, you’ll need to add the rtc module to your Pi’s startup sequence. This can be done by editing the /etc/modules file with sudo nano and adding the line “rtc-ds3231” or the appropriate module for your rtc chip. Then a sudo reboot will apply the changes.
What happens if I switch the microSD card on my Raspberry Pi – will I lose the RTC time settings?
When moving to a new SD card, you’ll need to reconfigure the rtc time settings. This involves re-enabling the i2c interface and rtc kernel module. You may also need to manually set the time from the hardware clock using sudo hwclock to ensure the system time is correct.
How do I troubleshoot issues where my Raspberry Pi’s RTC module is not maintaining the correct time?
If your rtc module is not keeping accurate time, first check the i2c connection using sudo i2cdetect. Verify the rtc device is properly recognized and that the kernel module is loaded. You may also need to replace the rtc battery or recalibrate the clock chip using available configuration tools.
Can I use multiple RTC modules connected to my Raspberry Pi for more advanced logging setups?
Absolutely! The Raspberry Pi can support connecting and using several rtc modules through the i2c bus. This allows you to set up complex logging systems that leverage the precision of multiple hardware clocks, providing even greater accuracy and reliability for your data collection needs.
Conclusion
Using an RTC with a Raspberry Pi makes accurate data logging straightforward. It keeps time without needing an internet connection, which benefits many projects. By following the setup steps and utilizing the sample code, users can easily incorporate logging features into their Raspberry Pi projects. This combination ensures reliable timestamps, making it easier to analyze data over time and enhance the overall functionality of their applications.
