Key Takeaway
- Check the wiring of the RTC module to ensure it is connected properly.
- Make sure the I2C settings are correct in the configuration file.
- If problems persist, check the battery and try a different RTC module.
The RTC not recognized on a Raspberry Pi can be a hassle. This issue prevents the device from keeping accurate time, which many users encounter due to incorrect wiring, settings, or software problems. Fortunately, fixing it isn’t complicated. With a few straightforward steps, anyone can tackle this issue effectively. If users follow the right guidance, they can restore their device’s timekeeping abilities in no time. Keep reading to discover the simple solutions that can help resolve the RTC recognition problem and ensure that the Raspberry Pi runs smoothly again.

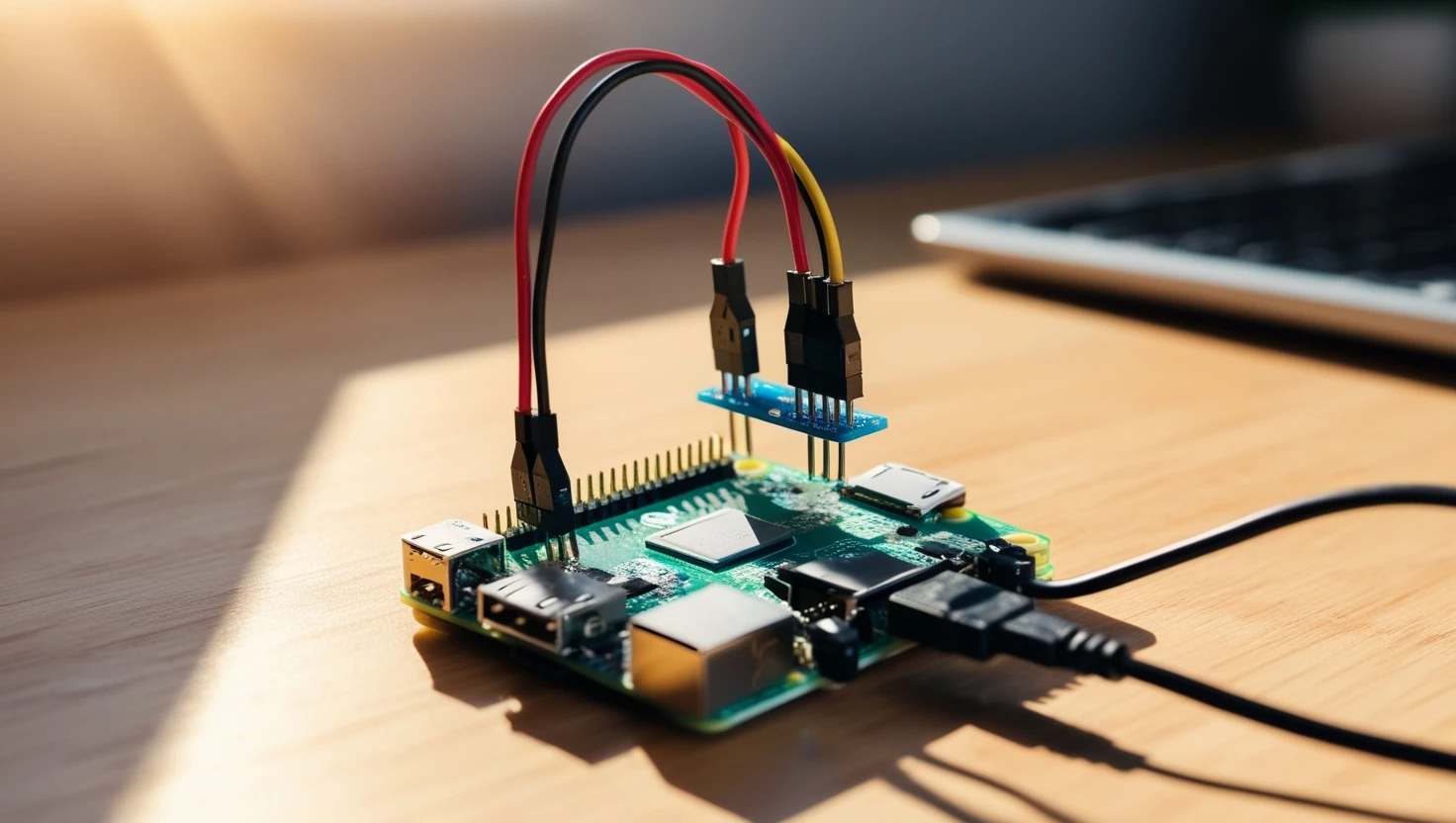

Hardware Connections
Credits: Superuser Project Aisle
The first step is to check the hardware connections. If the RTC chip isn’t connected properly, the Raspberry Pi won’t recognize it. Proper connections are vital for the RTC to function well. (1)
- Check Wiring: Users should ensure the RTC module connects to the correct pins on the Raspberry Pi. The SDA pin is for data, while the SCL pin is for the clock. Loose or mixed-up connections can prevent the RTC module from working. It’s a good idea to double-check each wire, using a diagram to confirm which pin is which. A small mistake can lead to a lot of frustration down the road.
- Power Supply: The RTC module requires power to keep time. If it doesn’t get enough power, it won’t work. Users should look for loose wires that may not be securely connected. Check for shorts, which occur when wires touch each other incorrectly. A visual inspection of the RTC module and its connections can help spot any issues. It’s important to confirm that the power connections are secure and that the Raspberry Pi is turned on.
If the wiring is solid and everything seems fine, it’s time to check the software settings.
Software Configuration
Next up is the software configuration. The Raspberry Pi needs to recognize the RTC module to function properly. Without the right settings, it might still not be detected.
Device Tree Overlays: Users must ensure the /boot/config.txt file includes the appropriate line for their RTC. For instance, if they are using the DS3231 RTC, they should add this line:
dtoverlay=i2c-rtc,ds3231
- This line instructs the Raspberry Pi to search for the RTC module during startup. It’s a crucial step—skipping it could lead to more problems later on. Users should open the file with a text editor, add the line, and save their changes. Making a backup of this file beforehand is a smart move, just in case anything goes wrong.
I2C Settings: Users also need to confirm that I2C is enabled. This can be done using the raspi-config tool. Alternatively, they can add this line to the same file:
dtparam=i2c_arm=on
- This allows the Raspberry Pi to communicate with the RTC module. After making these updates, it’s important to restart the Raspberry Pi. A reboot ensures that all the new settings take effect. Once the system restarts, it should recognize the RTC module as long as all settings and connections are correct. This simple step can often clear up many issues with RTC recognition.
Detecting the RTC
Now it’s time to check if the Raspberry Pi can detect the RTC. This step is crucial to ensure everything is connected and set up correctly.
After the reboot, users should open the terminal and run this command:
sudo i2cdetect -y 1
- This command scans for I2C devices on the bus. If everything is set up right, the terminal will show an entry for the RTC module. For example, if using the DS3231, you might see UU at address 0x68, indicating the RTC is connected and recognized. If it doesn’t appear, there may be an issue. Users should go back and double-check the hardware connections, making sure the SDA and SCL pins are wired correctly.
- It’s also a good idea to review the software settings again. If the RTC still doesn’t show up, a quick restart of the Raspberry Pi might help after making any changes. Sometimes a simple reboot can prompt the system to recognize new devices.
- If the RTC still isn’t detected, users should consider other devices connected to the I2C bus that might be causing interference. Temporarily disconnecting other I2C devices can help pinpoint the source of the problem.
Kernel Modules
If the RTC still isn’t recognized, it’s time to check if the right kernel modules are loaded. These modules are key for hardware to communicate with the Raspberry Pi.
Users can start by running this command to see if the RTC kernel module is available:
lsmod | grep rtc
- This command lists all currently loaded modules and filters for anything related to the RTC. If the RTC module isn’t listed, the system might not be able to use it correctly.
- If that’s the case, users may need to manually load the module. This usually involves adding the right line to the /boot/config.txt file, similar to the earlier step with the RTC overlay. After making these changes, a restart of the Raspberry Pi will help apply the new settings.
- If the kernel modules are correct but the RTC still doesn’t work, it’s worth checking the Raspberry Pi’s operating system version. Some older versions may have issues with certain RTC modules. Upgrading the operating system can often fix these problems.
- Additionally, it can be helpful to search online for any known issues with specific RTC models and the version of Raspberry Pi being used. Many users share their experiences in online communities, which can provide quick solutions for common problems.
Testing RTC Functionality
To check if the RTC is working, users can read the time from it. This step is crucial for confirming that the RTC is functioning correctly.
First, they should run this command in the terminal:
sudo hwclock -r
- This command reads the time from the RTC and displays it on the screen. If an error message appears, stating that the RTC is not found, it suggests a detection problem. This might mean the RTC isn’t connected properly, or there could be issues with software settings. Users should ensure their wiring is correct and that all configurations are in place.
If the time shows up correctly, that’s a good sign! However, users should also verify that the time is accurate. If it’s off, adjustments will be necessary. They can set the RTC to the correct time with this command:
sudo hwclock –set –date=”YYYY-MM-DD HH:MM:SS”
- They should replace “YYYY-MM-DD HH:MM:SS” with the actual date and time. Setting the correct time helps the RTC maintain accuracy, even when the Raspberry Pi is powered off.
- After setting the time, users can run the sudo hwclock -r command again to ensure the changes worked. It’s also a good idea to check the time after a reboot. This helps confirm that the RTC retains the correct time even when the Raspberry Pi is not powered on.
Troubleshooting Steps
If the RTC still doesn’t show up, users can follow these troubleshooting steps to resolve the issue.
- Check the Battery: The RTC module usually relies on a battery to keep time when the Raspberry Pi is off. If the battery is dead or not seated properly, the RTC won’t keep time. Users should remove the battery to check if it’s functioning. If it seems weak, replacing it with a new one often solves many RTC problems.
- Try a Different RTC Module: If users have another RTC module on hand, connecting it to the Raspberry Pi can help determine if the first module is faulty. Sometimes hardware fails, and testing with a different module can save time in troubleshooting.
- Test with Another Raspberry Pi: If issues persist, users might want to try the RTC with a different Raspberry Pi. Different models or operating system versions can have unique compatibility issues. Connecting the RTC to another device can reveal if the problem lies with the RTC module or the original Raspberry Pi setup.
- Review Online Resources: Users can also search forums and community discussions for similar issues. Many people share their experiences and solutions online, providing valuable tips and tricks for fixing RTC problems. Being part of a community can help users find answers quickly and effectively.
Additional Resources
If problems persist, users can turn to various forums and community discussions for solutions. These online platforms are filled with individuals who share their experiences with RTC issues on Raspberry Pi, making it a great way to learn from those who have faced similar challenges.
- Community Support: Websites like Stack Overflow, Raspberry Pi forums, and Reddit have active users ready to provide insights. Searching for specific keywords related to the model and issue can lead to helpful threads. Users can also ask questions and receive answers from those who have already solved similar problems.
- Documentation: The official Raspberry Pi documentation serves as another excellent resource. It often includes troubleshooting guides and setup instructions for different components, including RTC modules. These guides can offer crucial details that might be easy to overlook.
Being aware of common problems can simplify fixing the RTC not recognized issue.
- Common RTC Models: The DS1307 and DS3231 are popular RTC modules for Raspberry Pi. (2) Each has its unique wiring and setup needs, so recognizing which module is in use is essential. Users should always check the specific documentation for their RTC model to ensure they’re following the right steps for wiring and configuration.
- Configuration Requirements: Users need to modify the /boot/config.txt file to inform the Raspberry Pi about the RTC. Adding the correct overlay line for the specific RTC is crucial. Skipping this step can lead to detection issues.
- I2C Detection: Running sudo i2cdetect -y 1 helps check if the RTC is detected. This simple command provides immediate feedback on whether the RTC is connected and recognized. If the command doesn’t show the RTC, it means further troubleshooting is necessary.
If the RTC is still not recognized, users should check the power supply. It’s important to ensure that the RTC module is receiving adequate power. A weak or dead battery can prevent the RTC from functioning properly. Taking the time to review connections and settings can save a lot of frustration down the line.
FAQs
Why isn’t my real time clock showing up when I run sudo i2cdetect on my Raspberry Pi?
Sometimes the i2c interface doesn’t detect your rtc module right away. This could happen if the scl pin or sda pin isn’t connected properly to your raspberry pi. Running sudo i2cdetect helps you check if your hardware clock is being recognized properly.
What steps should I take when my DS3231 RTC or RTC DS1307 isn’t keeping the correct time?
First, check if the rtc chip is properly connected. Then use sudo hwclock to verify if your real time clock is working. Sometimes you’ll need to reinstall drivers using sudo apt to get your hardware clock working again with the auto renewal packs.
How do I know if my RTC module is properly connected to my Raspberry Pi’s I2C interface?
Check if your rtc module is connected to the right pins – the scl pin and sda pin must match your Raspberry Pi’s i2c interface connections. Use sudo i2cdetect to scan for connected devices and verify the hardware clock is detected.
What should I do when my Raspberry Pi won’t sync with my real time clock after a reboot?
Sometimes the hardware clock loses connection after a reboot. Try running sudo hwclock to manually sync the correct time. If that doesn’t work, you might need to reinstall your rtc module drivers using sudo apt.
Why does sudo i2cdetect show empty readings when my RTC chip is connected?
This usually means your i2c interface isn’t properly detecting the rtc module. Check both the scl pin and sda pin connections, and make sure your real time clock module is getting power. You might need to enable i2c in your Raspberry Pi settings.
How can I fix connection issues between my Raspberry Pi and DS3231 RTC?
Start by checking the physical connections of your rtc module. Use sudo i2cdetect to verify the i2c interface is working. If the unserer seite (our side) of the connection is good, check the size (itself) of the rtc chip for any obvious issues.
What are common power issues that prevent my RTC module from being recognized?
Your real time clock needs stable power to work properly. Check if your rtc chip is getting enough power through the Raspberry Pi. Sometimes the hardware clock won’t be detected if the power connection is loose or unstable.
Why won’t my Raspberry Pi read the correct time from my RTC after setting it up?
After setting up your rtc module, use sudo hwclock to set and verify the correct time. If your hardware clock still isn’t working, you might need to reinstall the necessary auto renewal packs using sudo apt. Make sure your i2c interface is properly enabled and configured.
Conclusion
Fixing the RTC not recognized issue on Raspberry Pi can be straightforward by following a few steps. Users should start by checking the wiring, ensuring the software settings are correct, and testing the RTC functionality. With a bit of patience and attention to detail, users can restore the RTC’s ability to keep accurate time. This process can help eliminate frustrations and ensure the Raspberry Pi runs smoothly.
References
- https://raspberrypi.stackexchange.com/questions/104127/how-to-check-if-installed-rtc-is-working-or-not
- https://raspberrypi.stackexchange.com/questions/91370/i2c-device-ds3231-rtc-not-detected
