RTC Modules for Raspberry Pi: Keep Your Projects on Time

Key Takeaway

  • RTC modules keep accurate time even when the Raspberry Pi is off.
  • Popular modules include DS1307 and DS3231, each with unique features.
  • Setting up an RTC module involves simple wiring and configuration steps.

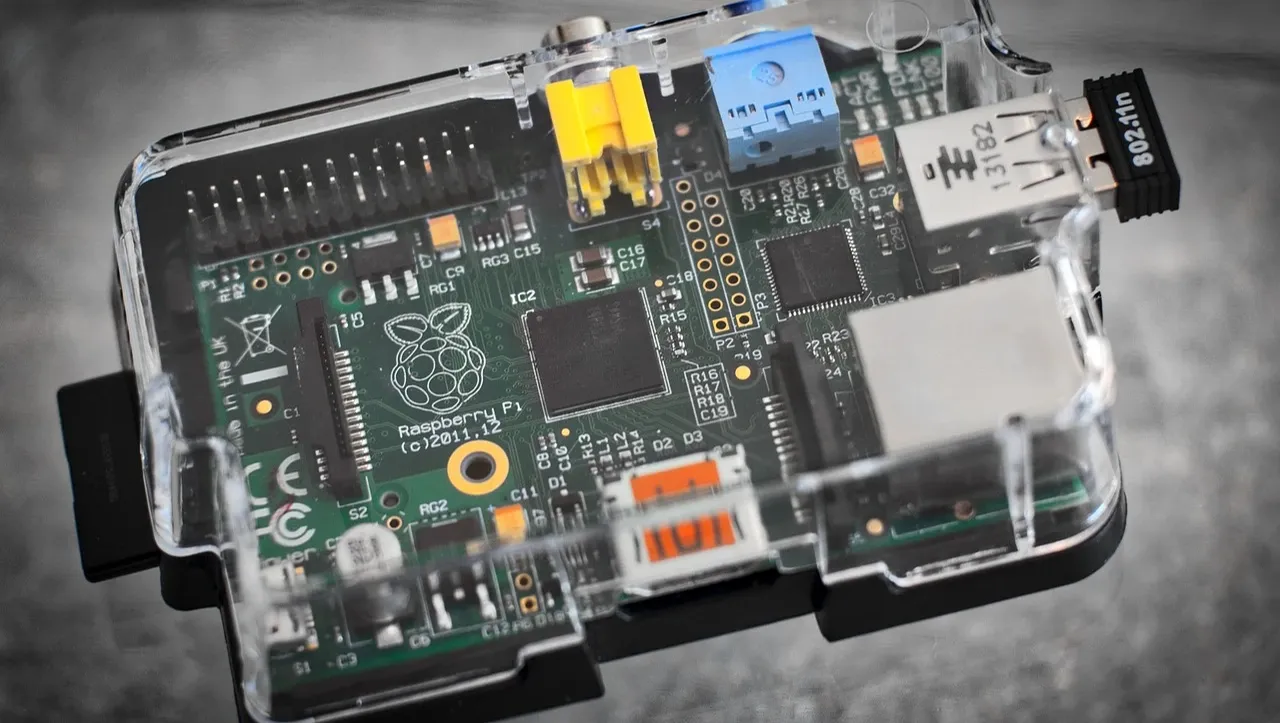

Adding a real-time clock, or RTC, is an important part of many Raspberry Pi projects. An RTC keeps accurate time even when the Pi isn’t connected to the internet. This is useful for all sorts of applications like data logging, automation based on schedules, and more. Setting up an RTC module is straightforward. These small add-ons ensure your Pi always knows the correct date and time. (1)

Whether your goal is precise timekeeping or just basic time-stamping, an RTC module enables that functionality. Continue reading to learn about popular RTC module options for the Raspberry Pi and how to connect each one. Understanding the basic setup process will prepare you to incorporate accurate time into your next build.

Understanding Common RTC Modules

Credits: Core Electronics

RTC, or real-time clock, modules are helpful add-ons for Raspberry Pi projects that need to keep accurate time. They allow a project to know the correct date and time, even without internet access. Here are some popular RTC module options and what they can do:

The DS1307 is a classic choice. It tracks seconds, minutes, hours, date, month, and year just like a regular clock. It even accounts for leap years through 2100. Best of all, its small battery backup means the time keeps going during power outages. The module also offers 56 bytes of memory to store settings. (2)

For more precision, the DS3231 module is a good upgrade. It has temperature compensation to maintain timekeeping in different environments. An integrated sensor allows it to monitor temperature alongside the time. Like the DS1307, its battery ensures schedules and timestamps stay accurate when the power goes out.

Power conservation is key for some projects. The PCF8523 uses less energy while providing similar timekeeping functions. It also gives users flexibility by supporting both 12-hour and 24-hour time formats. The lower power draw makes it suitable for battery-powered devices.

Whether logging sensor readings or automating tasks, knowing the right time is important. RTC modules let projects running on a Raspberry Pi maintain a clock independently of the internet. This is particularly useful for applications installed in remote areas with unreliable connectivity. The time will be correct no matter what.

Connecting and Configuring the RTC Module

Hooking up an RTC module to the Raspberry Pi is simple. Most modules only require connecting four pins: power (VCC), data (SDA), clock (SCL), and ground (GND). The DS1307, for example, can be directly wired to the Pi’s GPIO pins or plugged into a breadboard. Once the wires are in place, the module is ready to start keeping time.

A few basic steps are needed to prepare the Raspberry Pi software. First, it’s a good idea to make sure everything is updated. Then the I2C interface, which allows communication between the Pi and RTC, needs to be enabled. Specific drivers may also need to be installed depending on the module type.

To ensure the RTC works properly on startup, some configuration files require editing too. The modules file tells the Pi what drivers to load, while the rc.local file handles early initialization. No need to worry though, it’s just a matter of adding a few lines of code.

The final step is synchronizing the Pi’s system clock with the RTC. A couple simple commands write the current time to the RTC and also pull the time back when powering on. This allows the project to always know the correct date and time, even without an internet connection.

With just basic wiring and minimal coding changes, an RTC module provides reliable timekeeping so projects can accurately log data or automate tasks over long periods, even in remote areas without consistent power or internet access.

Common Ways RTC Modules Are Used

RTC modules have all sorts of handy uses in projects where keeping accurate time is important. Their ability to tell time independently comes in very handy in a few key situations.

Home automation is one popular application. In smart homes, devices need to coordinate lights, appliances, and more based on the time of day. An RTC lets lights turn on at sunset and off at sunrise without an internet connection. This makes the whole system more reliable for homeowners.

Data logging projects also benefit tremendously. Whether it’s monitoring temperature, humidity, or other environmental factors, having correct timestamps is essential. An RTC ensures sensor readings are recorded with the right time attached, even when offline. This accurate time data makes analyzing trends over time much easier.

Automating periodic tasks is another common use case. Maybe some plants need watering each morning at 7 am – an RTC can trigger this task without the internet. Or perhaps a weather station needs to record conditions hourly. The RTC ensures these actions happen on schedule.

By adding an RTC’s timekeeping skills, all sorts of projects gain a new level of dependability. From smart homes to data loggers to automated tasks, their ability to tell time without a connection comes in very handy for creating truly reliable systems.

Other Important Considerations When Choosing an RTC

There are a few other specs to think about when picking out an RTC module for your Raspberry Pi project. The environment and power needs to factor into which one will work best.

If temperature fluctuations are expected where the project will be, the DS3231’s compensation feature makes it a solid choice. Something like a greenhouse sensor system will want reliable timekeeping no matter what the temperature is.

All of these modules require a small backup battery to keep the time when the Pi is off. But battery life varies, so be sure to check how long it’s expected to last. The CR1225 is a common type that usually powers an RTC for 6 months or more with regular use. Don’t forget to replace batteries before they run out.

Power use is another consideration if your project will run on batteries for long periods. The PCF8523 sips less energy, perfect for remote weather stations or other applications that need to go for extended time off-grid. This efficiency can significantly extend your overall battery lifespan.

By taking into account conditions, power needs, and other specifics, you can pick the RTC module that best supports your unique project. These little timekeepers add dependability, so choosing the right fit matters.

FAQs

Why do I need a real time clock module for my Raspberry Pi?

When your Raspberry Pi loses power, it can’t keep track of time since it lacks a built-in real time clock. RTC modules with a coin battery solve this by maintaining the correct system time even when unplugged. This is crucial for projects that need accurate timestamps or time-sensitive operations.

How do I connect an RTC board to my Raspberry Pi?

Most RTC modules connect through the i2c interface and gpio pins on your Raspberry Pi. They typically need 3v and 5v power supply connections. Popular modules like the ds3231 rtc are raspberry pi compatible and easy to install on the Pi Hut or similar marketplaces.

What commands do I use to set up my real time clock?

First, use sudo apt to install needed tools. Then run sudo i2cdetect to find your clock chip. Use sudo nano to edit config files and sudo hwclock to set the time. The hardware clock can then read the time from the time protocol servers to stay accurate.

How reliable are RTC modules for keeping time?

The rtc board, especially those with a ds3231 rtc chip, are very accurate at keeping real time. With a good coin battery, these raspberry pi rtc modules can maintain the correct time for years, even when the main power supply is off.

What should I look for when buying RTC modules?

When shopping for real time clock modules, look for raspberry pi compatible boards that come with auto renewal packs. Make sure they have a reliable clock chip, proper gpio pins support, and include a coin battery. Most sellers like Pi Hut offer options that work well.

How does the RTC module maintain time without main power?

The rtc module uses a small coin battery to power just the clock chip when main power is off. This lets the hardware clock keep tracking real time using very little power, so your system time stays accurate even during power cuts.

How do I check if my RTC is working properly?

After setting up your real time clock module, you can read the time using sudo hwclock to see if it matches the current time. The i2c interface makes it easy to check if your raspberry pi rtc is communicating correctly with simple commands.

What’s the process for time synchronization between RTC and Raspberry Pi?

When your Raspberry Pi boots up, it gets time from the hardware clock module. You can also set the time manually using sudo hwclock, or let it sync automatically with online time protocol servers for perfect accuracy.

Conclusion

RTC modules add dependable timekeeping to Raspberry Pi projects. Popular options like the DS1307 and DS3231 connect easily via basic wiring. With a few configuration steps, projects gain the ability to keep accurate time even without internet access. This makes systems more reliable for applications involving home automation, data logging, scheduled tasks and more. An RTC ensures correct timestamps that are crucial for many useful creations.
