Raspberry Pi RTC Setup Errors: Common Problems and Solutions

Key Takeaway

  • Ensure that I2C is enabled in your configuration files.
  • Use sudo for commands to avoid permissions issues.
  • Follow troubleshooting steps to resolve setup errors effectively.

Setting up a Raspberry Pi RTC can be tricky. Many users run into problems such as I2C not detecting, or the RTC time getting messed up. Real-life experiences show that these problems usually come from simple setup errors. Understanding these common pitfalls can help users avoid frustration. (1)

To tackle these challenges effectively, it’s essential to follow straightforward steps. By reading on, users can find easy solutions that will make their RTC setup process a lot easier. Keep going for practical tips to ensure a smooth installation.

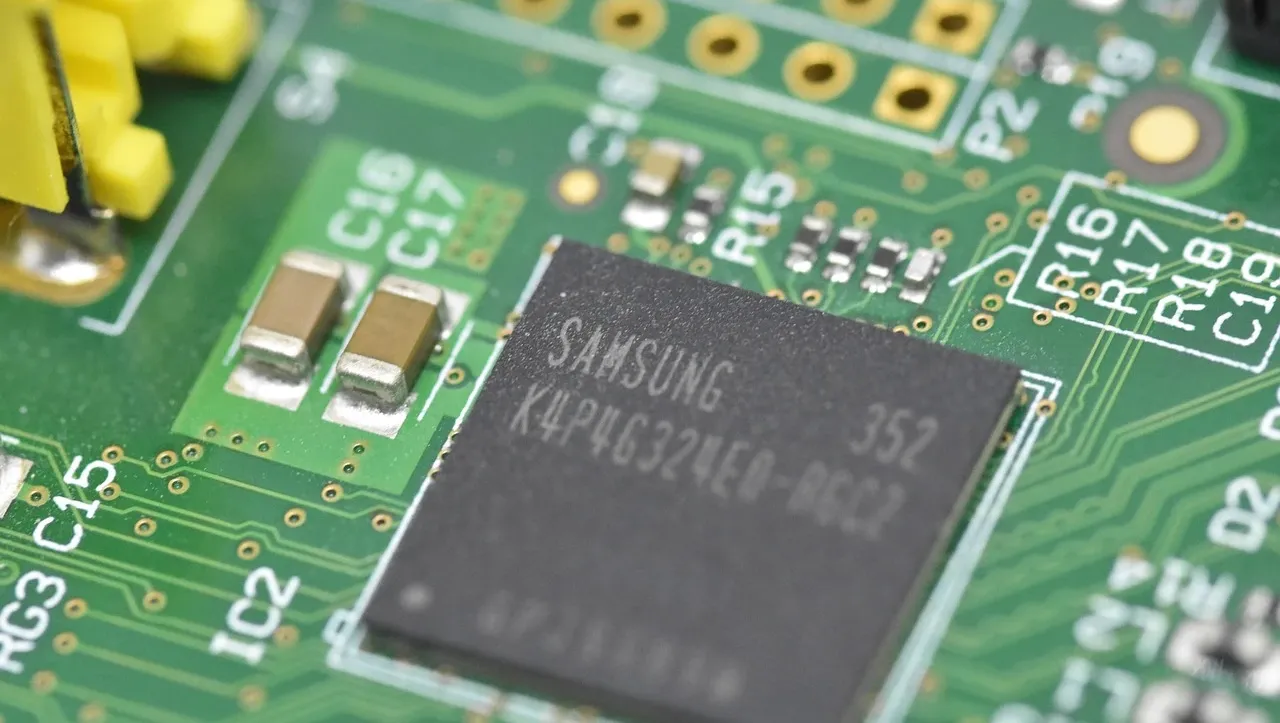

Common RTC Setup Errors

Credits: Superuser Project Aisle

I2C Not Detected

One common hiccup is when the I2C interface fails to be recognized. This blocks communication with the RTC module, leaving users frustrated. Often, this issue arises during setup. To resolve this, users should start by adding a couple of lines to the /boot/config.txt file, which is essential for Raspberry Pi setup. They need to include:

dtparam=i2c1=on

dtoverlay=i2c-rtc,ds1307  # or ds3231 depending on the module

These lines activate the I2C bus and configure the right overlay for the RTC. After making these changes, a reboot is necessary to ensure the new settings take effect. Neglecting to reboot might leave the changes inactive and lead to more headaches. Once the Raspberry Pi restarts, users can check if the I2C interface is now detected. If the problem persists, further troubleshooting may be needed. (2)

RTC Time Corruption

Another frustrating problem is when the RTC time resets to January 1, 1970, after a reboot. This can be bewildering, making the RTC seem defective. Typically, this problem happens because the driver loads before the I2C bus is ready. To fix this, users can modify their startup scripts by adding a small delay, such as sleep 0.5. This allows the RTC driver to load only after the I2C bus is fully ready. This simple tweak can lead to better results. Additionally, users should check that the RTC is set to the correct time after each reboot to ensure it keeps accurate time.

Invalid Hardware Clock Registers

Sometimes, users see messages indicating that the hardware clock registers have invalid values. This scenario can be frustrating and may suggest that the RTC module isn’t set up properly. To fix this, users should first inspect their wiring. Loose or faulty connections can disrupt communication between the Raspberry Pi and the RTC. It’s also important to check that the correct chipset is specified in the overlay configuration. Setting the right chipset ensures the RTC operates correctly. Taking a moment to verify these details can prevent ongoing trouble. If issues continue, considering a new RTC module might be a good idea.

Permission Issues

Users may run into permission errors when trying commands like hwclock -r. This is a common obstacle. To avoid these issues, it’s important to use sudo when running commands that access hardware. This command grants the necessary permissions to work with the RTC module. Without it, the Raspberry Pi restricts access, leading to confusion. Users should keep in mind that many system commands require elevated privileges. Including sudo in the command will streamline the experience with the hardware.

Device Not Found

If users run i2cdetect -y 1 and see no devices, the issue may involve wiring or improper connection of the RTC module. This can leave them scratching their heads. They should carefully double-check all connections to ensure everything is secure and correctly placed. The RTC module requires proper power and data connections to work. If the wiring appears correct, users should confirm that the RTC module is powered on. Without power, it won’t communicate with the Raspberry Pi at all. Often, simply reconnecting the module can clear up the issue. If the problem remains, testing the RTC with another Raspberry Pi can help identify if the module is faulty.

Troubleshooting Steps

Check Wiring

First, users should make sure that all connections to the RTC module are secure and correctly placed. A loose wire can lead to communication issues, so it’s vital to consult the specific wiring diagram for the chosen RTC model. Properly connecting the GPIO pins is essential for a successful setup. Taking a moment to inspect each wire carefully can make a difference. If any wires look frayed or damaged, replacing them is a good idea. Reliable connections will help ensure smooth communication between the RTC and the Raspberry Pi.

Verify I2C Configuration

Users should run sudo raspi-config to enable I2C support if they haven’t already. This step is essential for the RTC to work properly. The I2C interface must be turned on for the Raspberry Pi to communicate with the RTC module. Navigating through the interfacing options in the configuration tool allows users to enable I2C easily. After making these changes, rebooting the Raspberry Pi is necessary to ensure all configurations take effect. If I2C is set up correctly, the RTC should function as expected.

Inspect Kernel Messages

Once rebooted, users can check kernel messages for any errors related to I2C or the RTC by running dmesg | grep rtc. This command can shed light on what went wrong during startup. Users should watch for any error messages indicating trouble with loading the RTC driver or recognizing the I2C bus. These messages can help identify the source of the problem. If errors appear, users can take appropriate troubleshooting steps, which may include checking configurations or assessing physical connections.

Remove Conflicting Services

If services like fake-hwclock are running, users should consider disabling or removing them. These services can interfere with RTC operations and create complications. The fake-hwclock service might stop the RTC from updating correctly, so it’s wise to remove it if it’s not necessary. Keeping the system free from unnecessary services can help prevent conflicts with the RTC.

Test with Different Modules

If problems persist, users might try a different RTC module to rule out hardware issues. Sometimes, RTC modules can be faulty or damaged. Testing with a known working module can help determine if the original RTC is the issue. If the new module works fine, replacing the old one is the best course of action. Keeping a spare RTC module handy can save time and frustration during troubleshooting.

Check Configuration Files

Users should verify that their /boot/config.txt includes the correct overlay line for their RTC, like dtoverlay=i2c-rtc,ds1307. This configuration is vital for the system to recognize the RTC. If this line is missing or incorrect, the Raspberry Pi may not load the RTC driver properly. Carefully editing the configuration file is essential, and after making any changes, rebooting the Raspberry Pi ensures they are applied.

Use i2cdetect

Running sudo i2cdetect -y 1 can help users check if the RTC module is detected on the I2C bus. If the output shows “UU”, it means the driver is already using the device. If the RTC doesn’t show up, users should take another look at their wiring and configuration settings. This command can confirm whether the RTC is correctly connected and communicating with the Raspberry Pi. If issues still arise, revisiting earlier troubleshooting steps may be necessary.

Modify Startup Scripts

If the RTC fails to keep time after a reboot, users should consider creating scripts to read from and write to the RTC during startup. Incorporating sleep commands can ensure proper timing. This strategy helps make sure that the RTC updates correctly every time the Raspberry Pi boots up. Writing startup scripts to set the current date and time ensures that even if the RTC module doesn’t retain time, the system can update it automatically.

FAQs

Why isn’t my RTC DS3231 showing up on the i2c bus after installing i2c tools?

First, check if i2c dev is enabled on your Raspberry Pi OS. Run sudo modprobe i2c and sudo i2cdetect -y 1 to scan the bus. If nothing shows up, verify your RTC module connections and run sudo modprobe rtc to load the kernel module. Sometimes a sudo reboot is needed after these steps.

How do I properly set the time on my Raspberry Pi with a hardware RTC?

After connecting your hardware clock, use sudo hwclock to read the time from the hardware RTC. Set the current date and time with the system time command, then write it back to the RTC. Make sure auto renewal packs are disabled during this process to prevent time conflicts.

Why does my Raspberry Pi boots with incorrect time despite having an RTC module?

This often happens when the pi setup process hasn’t properly initialized the hw clock. Check if the rtc time matches your system time. You might need to run sudo systemctl to check if the time service is running correctly. Also verify your ds3231 rtc is properly recognized by the system.

What should I do when sudo hwclock shows “invalid argument” errors?

This typically happens when there’s a problem with the i2c protocol communication. First, ensure your hardware rtc is properly connected to the gpio pins. Then run sudo modprobe rtc-ds3231 to load the correct kernel module. If the error persists, you may need to reinstall i2c tools.

How do I detect the RTC and verify the i2c protocol is working?

Open terminal and run sudo i2cdetect -y 1 to scan the i2c bus. Your rtc board should appear at a specific address (usually 0x68 for DS3231). If it’s not showing up, check your pi rtc connections and make sure you’ve enabled i2c in pi setup.

Why isn’t my system time syncing with the real time clock after sudo reboot?

First, check if a fake hwclock is interfering with your real time clock setup. Use sudo nano to edit the configuration files and ensure the correct rtc module is loaded at boot. You might need to set the time manually once and run sudo hwclock -w to write it to the hardware clock.

How do I properly connect the GPIO pins to my RTC board?

On your Raspberry Pi, locate the i2c bus pins (SDA and SCL). Connect these to your rtc module following the manufacturer’s pinout. Make sure to connect VCC and GND correctly. After connecting, reboot and use i2c tools to verify the connection.

What’s the correct way to comment out the following lines in fake hwclock when setting up the RTC?

When setting up the rtc on your Raspberry Pi OS, open the fake hwclock configuration with sudo nano. Find and comment out lines related to the fake-hwclock service. Save the file and run sudo systemctl to restart the time service. This ensures your hardware clock takes precedence.

Conclusion

Setting up a Raspberry Pi RTC can come with several challenges. Users often face common issues like I2C detection failures, time corruption, and permission troubles. By following the troubleshooting steps outlined, users can effectively address these problems and ensure their RTC setup works smoothly. This will lead to accurate timekeeping, enhancing the functionality and reliability of their Raspberry Pi projects. With the right approach, users can enjoy a seamless experience in their RTC setup.
