Key Takeaways
- RTC modules maintain accurate time when the Raspberry Pi is off.
- The DS3231 is a popular choice for its accuracy and temperature sensing.
- Setting up I2C is crucial for communication between the Raspberry Pi and the RTC.

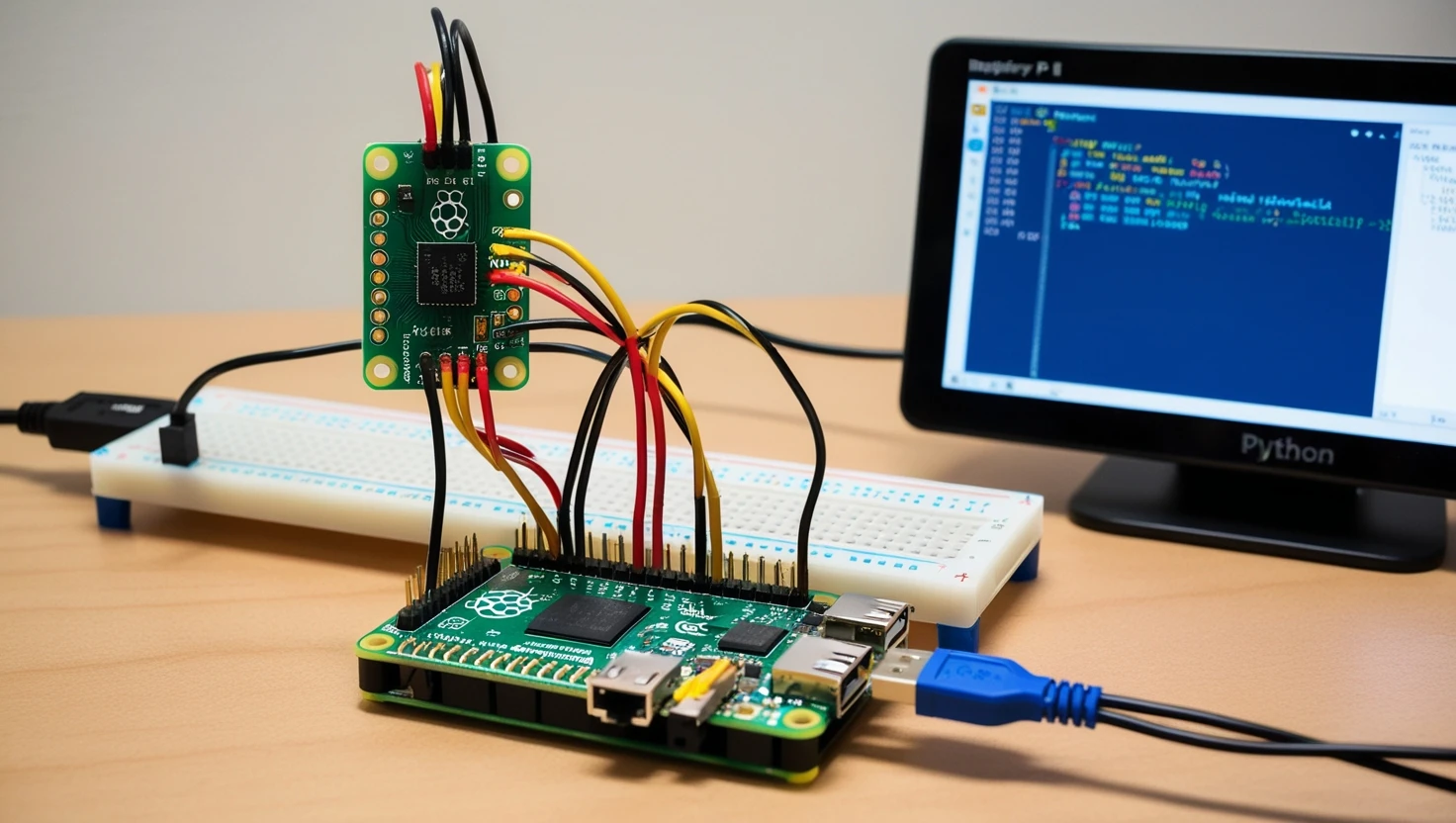

Connecting an RTC module gives Raspberry Pi projects the ability to track the accurate time regardless of network connectivity. The single board computer lacks an internal real-time clock, making an external RTC like the DS3231 essential. Users first need to physically install the module, linking it to the appropriate GPIO pins. (1)
Software setup then forms the foundation for the two devices to interact seamlessly. Configuring the kernel module and modifying system files ensures the RTC initializes correctly each boot. A brief Python example shows retrieving the hardware clock’s time signature in an easily readable format.
With the RTC providing consistent timekeeping even offline, creative possibilities abound. One can imagine logging sensor readings with timestamps over long deployments or programming automated routines independent of internet availability. Continue reading to learn more about the step-by-step process integrating an RTC to unlock the independence to schedule and time-stamp activities as needed.
Understanding RTC Modules
Credits: DroneBot Workshop
The Raspberry Pi lacks the ability to track time when powered down, making real-time clock modules valuable additions. Among the popular options are the DS1307 and DS3231.
The DS1307 provides a basic yet functional solution for general timekeeping needs. I2C communication simplifies integration into projects. However, it lacks features such as temperature sensing.
The DS3231 offers improved precision along with useful temperature sensors. By adjusting the time based on fluctuations, it maintains highly accurate timekeeping even as ambient conditions change.
Choosing the right RTC allows Raspberry Pi users to ensure their creations consistently have the correct date and time available. Applications involving data logging particularly benefit from reliable timestamps independent of internet connectivity. Overall, incorporating an RTC empowers projects with the ongoing ability to schedule activities and document time-based information precisely.
Connecting Hardware for RTC Operation
Some key components are needed to interface an RTC with a Raspberry Pi. An RTC module, like the DS1307 or DS3231, provides timekeeping abilities, while jumper wires facilitate communication.
Physical connection forms the basis for proper functionality. Each RTC model specifies unique wiring directions. The DS1307 and DS3231 share similarities, with VCC connecting to respective power sources and GND completing the circuit to common ground.
Both modules also align their SDA and SCL pins to the Raspberry Pi’s I2C pins – GPIO 2 and GPIO 3 respectively. This pairing transfers the crucial data and clock signals enabling synchronized time data exchange.
Proper attention to wiring diagrams ensures reliable connections between devices. Once assembled, testing the physical interface concludes hardware preparations ahead of software configuration. Correctly fitting the requisite components into place sets the stage for the Raspberry Pi to integrate the RTC’s timekeeping services into projects requiring precision scheduling and timestamping.
Configuring Software Support
Before the RTC’s full capabilities emerge, setting up I2C communication between the Raspberry Pi and module is critical. Users enable this interface through the configuration menu after updating packages from the terminal. Installing complementary drivers then equips the single board computer to interact over this bus.
Additional tweaks ready the system for automatic RTC initialization. Editing files loads requisite kernel modules and prevents conflicting startup instructions. A scan confirms the expected address for the connected clock chip displays, signifying hardware recognition.
These software preparations lay important groundwork. Correctly modifying system files and installing peripheral management tools outfit the Raspberry Pi to leverage the RTC’s abilities. Timekeeping duties now transfer from standby battery buffers to synchronized integration within projects involving precise scheduling, data logging or other timing needs. Clean setup completes the bridge allowing seamless hardware-software cooperation going forward. (2)
Synching Accurate Time
With RTC configuration complete, focusing efforts on time setup ensures correct keeping moving forward. Writing current system time initializes the clock, which then maintains synchronization independently of the Raspberry Pi’s power state.
Reading retrieved timestamps from the RTC verifies proper communication. A custom date assignment caters to individual scheduling needs as required.
Enhancements to rc.local round out preparations. Recognizing the RTC automatically each boot through the new_device command maintains continual system-hardware alignment without disruption. Reliable timekeeping thus remains intact to serve the time-sensitive demands of diverse projects.
Establishing the initial time anchor and automating continued synchronization positions the connected clock module to fulfill its role of accurately tracking elapsing time. Projects now gain access to the dependable timing foundation empowering tasks from precise logging to pre-scheduled controls and notifications.
Verifying the Real-Time Clock Module
Connecting external devices to your Raspberry Pi requires double checking to make sure everything’s working properly. One important device users add is a real-time clock (RTC) module to keep accurate time even when the Pi is powered off. Here are some tips for verifying a smooth RTC setup:
To start, use an I2C scan command in the terminal to see if your Pi can “talk” to the RTC. The address that shows up means they’re connected. If not, go through the wiring again – it’s easy to mix up pins.
Sometimes modules don’t show up due to missing pull-up resistors, which help data transfer over I2C. Be sure to install those if your kit didn’t include them already.
If the device is still unseen, check each wire attachment too. Mixing up where they plug into the Pi vs the module is an easy mistake. Also verify I2C is activated in the Pi’s configuration – without that, it can’t recognize any external I2C gear.
Common issues like these are usually easy fixes if you retrace your steps. Taking time to verify the RTC connection up front avoids headaches later on. With the module showing up in an I2C scan, you’ll know your Pi and RTC are ready to keep time for all your projects!
FAQs
How do I get started with connecting a DS3231 RTC module to my Raspberry Pi GPIO pins?
First, you’ll need to connect your rtc module to the correct gpio pins using the i2c interface. The DS3231 rtc module connects to the i2c bus through the scl pin. Once connected, you’ll need to install i2c tools and enable i2c dev support to get your hardware clock working.
What steps do I need to follow to set up I2C and install the necessary tools for my RTC?
Start by using sudo apt to install i2c tools and enable the kernel module with modprobe i2c. Then use sudo i2cdetect to check if your rtc dev is properly connected to the i2c bus. These steps ensure your based rtc can communicate with your raspberry pi rtc system.
How can I program my RTC board to read the time using Python?
Use python smbus to communicate with your rtc modules through the i2c protocol. After setting up i2c, you can write simple code to read the time from your ds3231 rtc. This lets you get both the current date and time and even temperature data from the rtc chip.
What’s the process for setting the correct time on my battery backed RTC?
To set the time, use sudo hwclock to sync with the system time or manually set the time. This is especially useful when you don’t have an internet connection. The battery backed rtc board will keep track even when powered down, unlike fake hwclock.
How do I edit configuration files to make my RTC work after a reboot?
Use sudo nano to edit the necessary files. Navigate with arrow keys to make changes, then save the file. You’ll need to add modules and commands to ensure your rtc pi setup works after installing a new microsd card or system update.
Why do I need to install I2C tools and what do they do?
I2c tools help your raspberry pi rtc communicate through the i2c interface. After you install i2c tools, you can use commands like sudo i2cdetect to verify your rtc real time clock is properly connected and the time is correct.
What’s the difference between various RTC modules from places like AB Electronics UK?
Different rtc modules offer various features, but most use the i2c bus for communication. The ds3231 rtc module is popular because it can track time from the hardware reliably. Check the table of contents of your module’s documentation for specific features.
How do I verify my RTC time matches the system time?
Use sudo hwclock to compare your rtc time with the system time. This helps ensure your auto renewal packs and other time-sensitive operations work correctly. If they don’t match, you may need to reset your hardware clock or reinstall your rtc dev drivers.
Conclusion
Connecting a real-time clock module to your Raspberry Pi lets it keep the accurate time even without the internet. With a simple wiring and software configuration, the RTC’s battery-powered clock chip works to ensure your Pi always has the right date and time. This is helpful for any DIY project where logging or automating tasks based on time is important. With a RTC module installed, your Pi’s time will stay consistent.
