- is_customized: Yes
- Model Number: DS3231
- Operating Temperature: N/A
- Dissipation Power: N/A
- Supply Voltage: N/A
- Application: Computer
- Condition: New
- Type: Module
- Brand Name: SZYTF
- Origin: Mainland China
Overview:

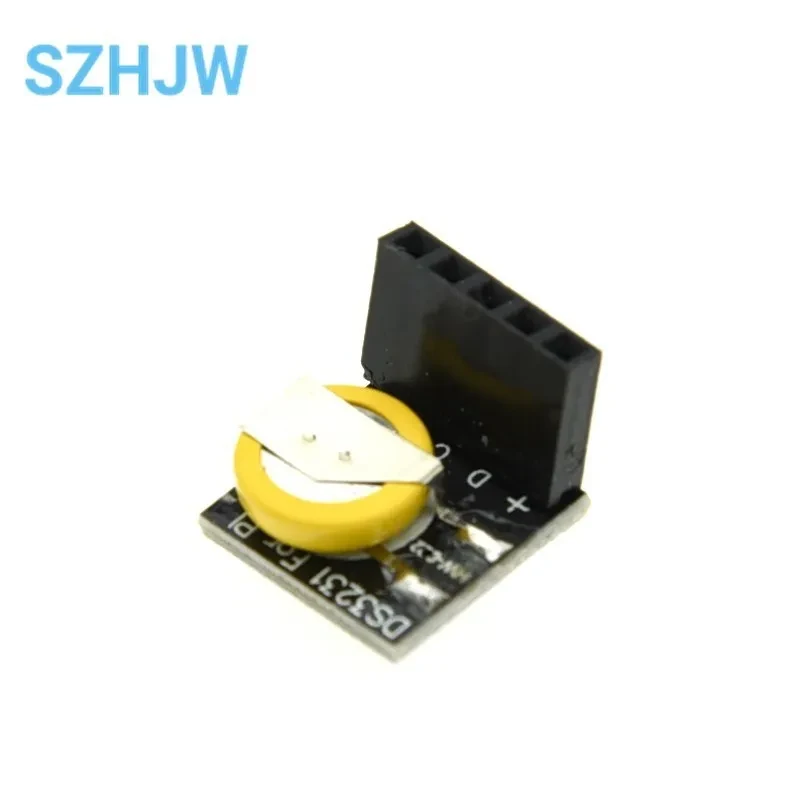

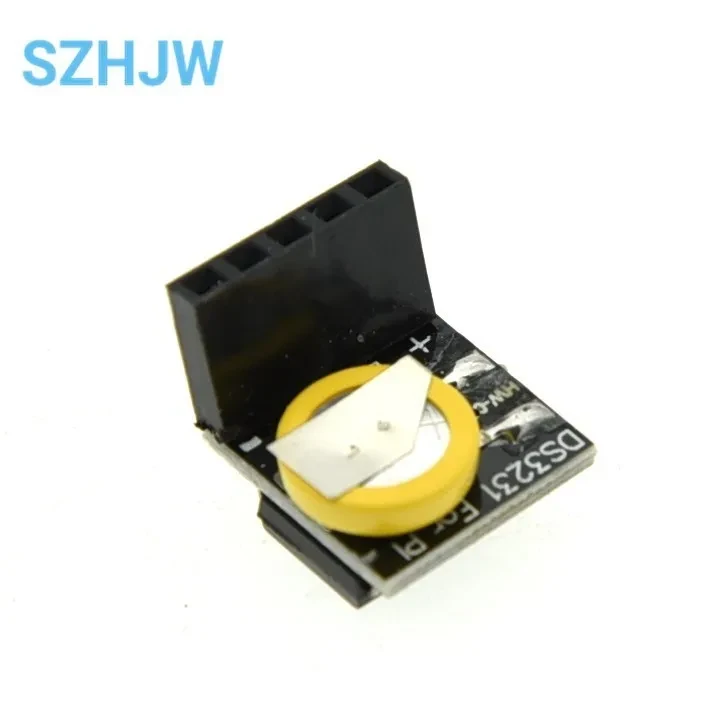

highest precision clock module DS3231
Note board can also use this module .
Module itself can adapt to 3.3V and 5V system without level conversion , this is a super easy !
Characteristic:
1.-40 ° C to + 85 ° C temperature range , timing accuracy is maintained at ± 5ppm (± 0.432 s / day )
2. Continuous Timekeeping Battery Backup
3. Low power consumption
4. The device package, and functionally compatible with the DS3231
5. The complete calendar clock functions include seconds, minutes , hours, day , date , month and year time, and provide valid until 2100 Leap Year Compensation
6. The two -day alarms
7.1Hz and 32.768kHz output
8. Reset button to output and input jitter
9. High-speed (400kHz) I2C serial bus
10. + 2.3V to + 5.5V supply voltage
11. The accuracy of ± 3 ° C digital temperature sensor
12.-40 ° C to + 85 ° C operating temperature range
13.16 Pin SO (300mil) package
14. Underwriters Laboratories (UL) certification
