- is_customized: Yes
- Model Number: DS1302
- Operating Temperature: n/a
- Dissipation Power: n/a
- Supply Voltage: n/a
- Application: Computer
- Condition: New
- Type: Module
- Brand Name: SZYTF
- Origin: Mainland China

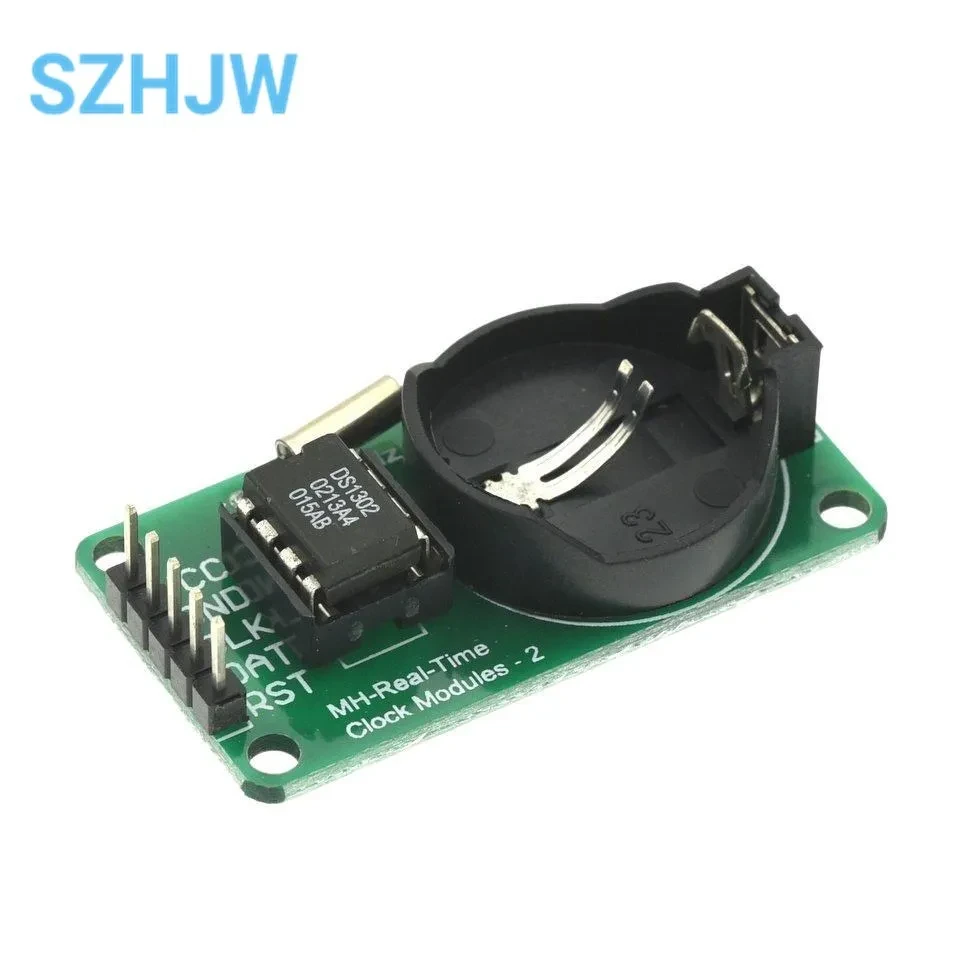

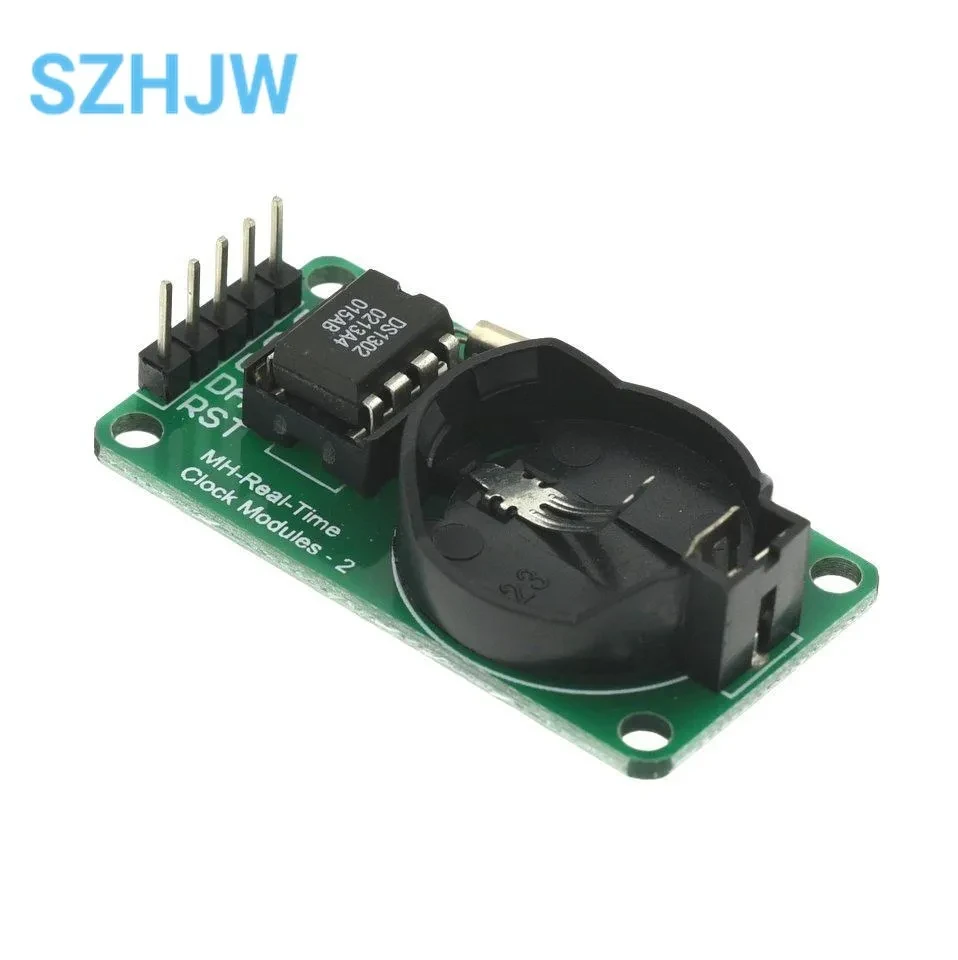

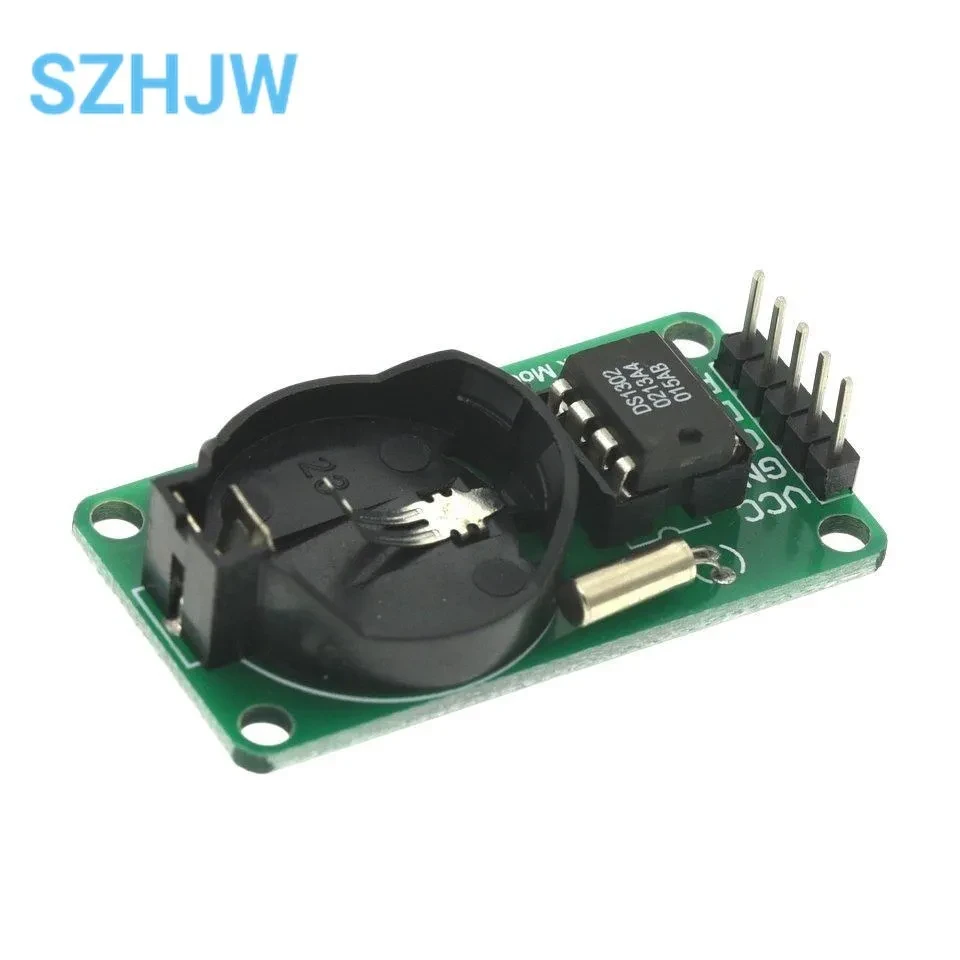

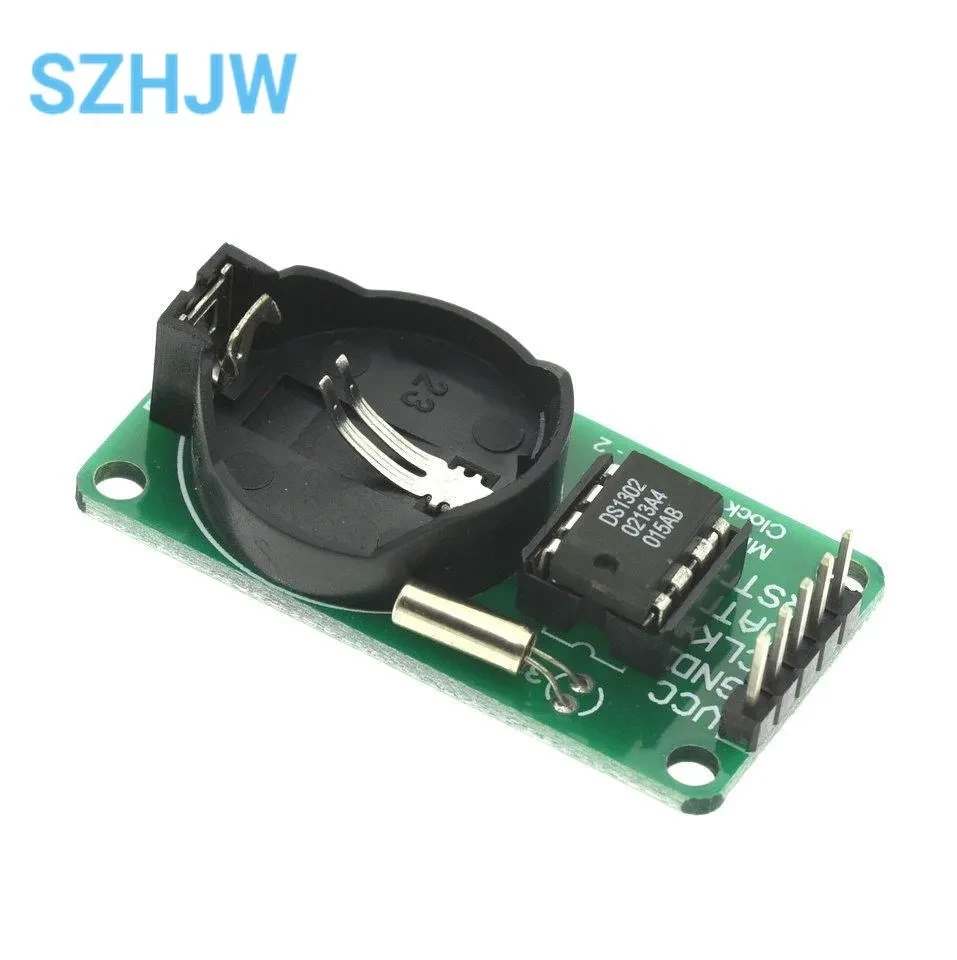

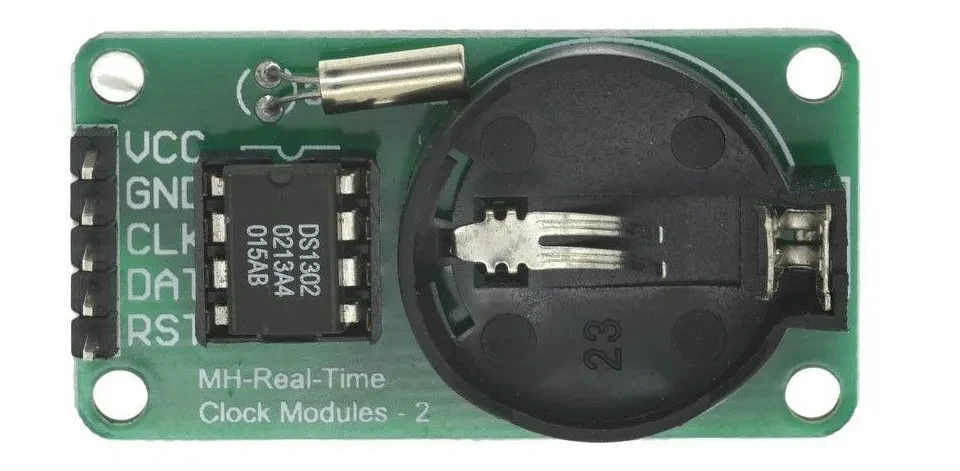

DS1302 Real Time Clock Module
The DS1302 contains a real-time clock/calendar and 31 bytes of static RAM, which communicates with the MCU via a simple serial interface. The real-time clock/calendar circuit provides information on seconds, minutes, hours, days, weeks, months, years, and the number of days per month and leap year can be adjusted automatically. Clock operation can be decided in 24 – or 12-hour format by AM/PM indication. The DS1302 can communicate with the single chip computer simply by synchronous serial mode, and only three ports are needed: (1) RST reset (2) I/O data line (3) SCLK serial clock. The read/write data of the clock /RAM is communicated as one byte or as a character set of up to 31 bytes. The DS1302 operates with very low power consumption and holds data and clock information at less than 1mW
Module parameters:

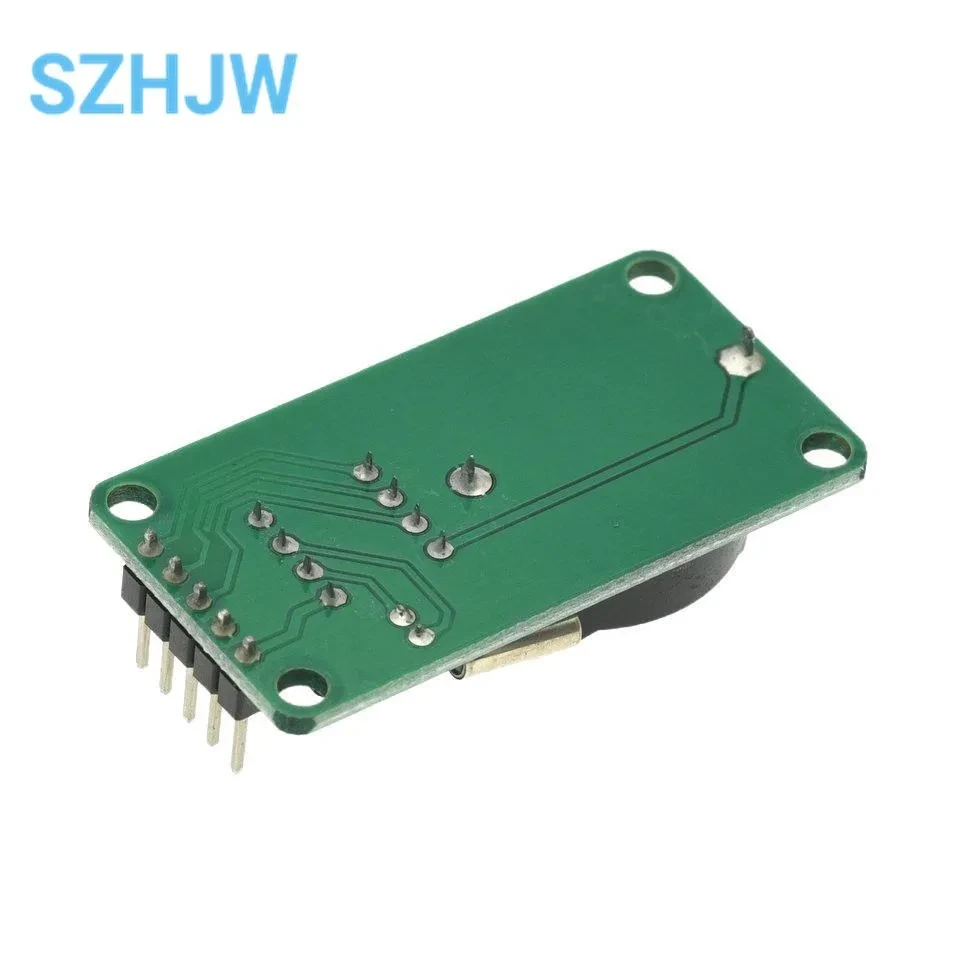

1.PCB is a single panel, size: 44mm*23mm*1.6mm
2. With 4 positioning holes, diameter 3.1mm
3. The standby battery is Tianqiu CR2032, voltage 3V, current 260mAh, non-rechargeable battery.
4. Crystal vibration 32.768KHz, imported from Japan, matching capacitance of 6pF, size 2*6mm
5.DS1302 is a large 8-pin in-line domestic chip, with IC seat under the chip, which is convenient to replace and plug the chip
6. The working voltage of the module is compatible with 3.3V/5V, and can be connected with 5V and 3.3V single chip microcomputer
7. Working temperature: 0°– 70°
Wiring:
Vcc – +5V / 3.3V
GND – GND
CLK – P01
DAT – P02
RST – P00
Note:
Do not reverse VCC and GND, or it will cause damage
It requires a pull-up resistor for P0 port of 51 MCU, if without, you can connect the data cable to other terminal
Package included:
1PCS x DS1302 Real Time Clock Module
