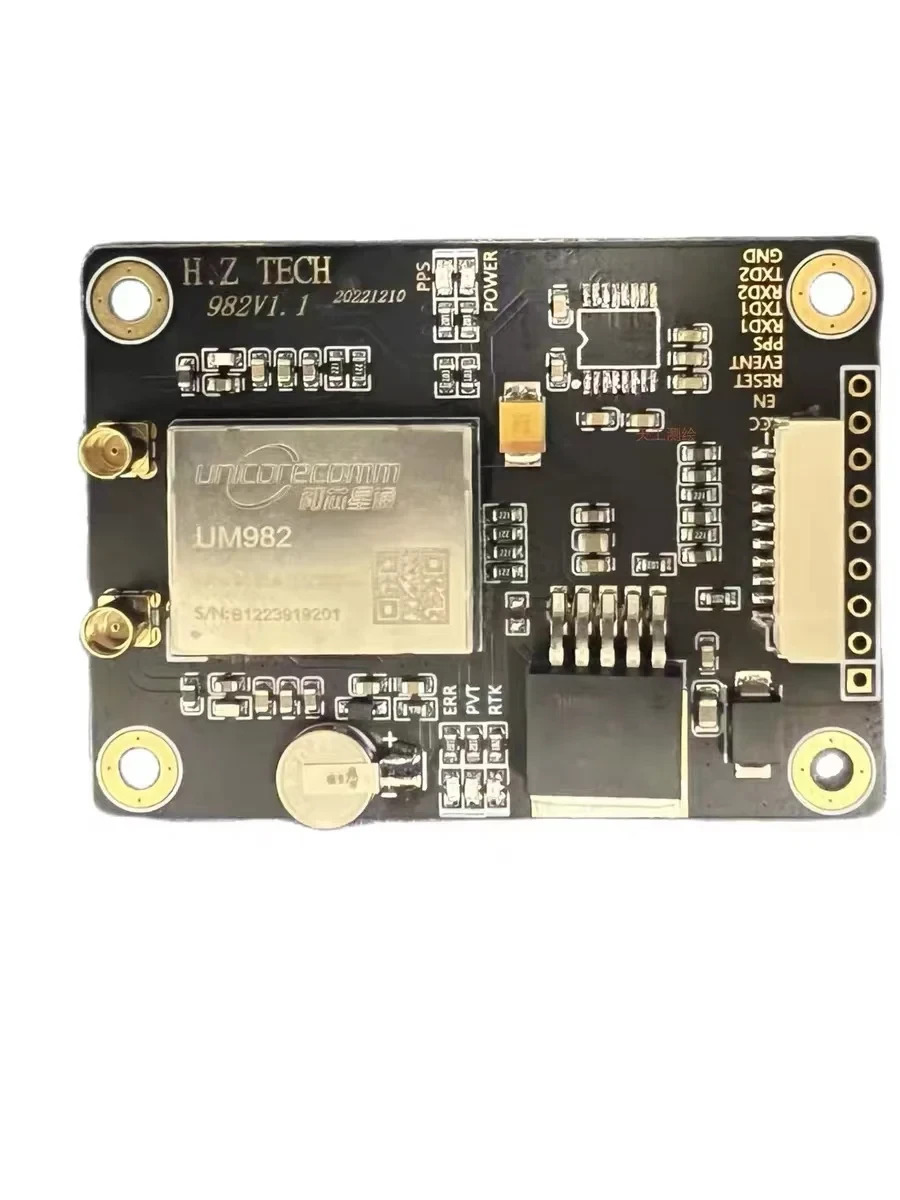

1PCS/LOT UM980 UM982 module GNSS Full system Full frequency cm low power RTK differential UAV with high precision

$390.82 – $408.31

SKU: 3256806104329893
  • Hign-concerned Chemical: None
  • Model Number: UM980 UM982
  • Condition: New
  • Type: Module
  • Origin: Mainland China

First, product introduction

The AK314-2 model of the company adopts the full-system full-frequency RTK engine and the Mantistar RTK integrated module (hereinafter referred to as the module), which is a real-time dynamic differential positioning module with ultra-low cost, low power consumption and high performance. The highly reliable carrier phase difference technology of the module can provide real-time centimeter-level positioning accuracy for UAV, automobile and mapping users.

The module can be configured as "mobile station" or "reference station" working mode, through the co-view observation between "mobile station" and "reference station", the carrier phase difference technology is used to eliminate the ephemeris error, ionospheric error, tropospheric error, inter-satellite clock difference and other measurement errors, and finally obtain high-precision positioning results.

Configured as a "base station" module, differential interface output RTCM2 /3.x standard data stream, compatible with most commercial mobile stations in the market. At the same time, the reference design of network RTK is provided, which can distribute differential data stream to all mobile stations through network.

The board configured as a "mobile station" has a differential interface supporting RTCM2.x/3.x differential data format, which can be connected to the user’s existing reference stations of other brands or access the national Beidou foundation enhancement system.

Module static relative positioning accuracy <1cm, medium dynamic relative positioning accuracy <2cm, output rate 1~10Hz, can be used in a variety of scenarios, with high cost performance.

Second, product characteristics

2.1 Main Features

The AK314-2 integrated module has the following features:

 Based on the UM980 series product design, the module provides stable, high-precision positioning results even in harsh environments.

 Also supports BDS B1I/B2I/B3I/B1C/B2a/B2b + GPS L1/L2/L5 + GLONASS L1/L2 + Galileo E1/ E5a/E5b/E6 + QZSS L1/L2/L5 /L6 + SBAS

 Support Beidou /GPS/Galileo/GLONASS four-mode combined RTK solution, with fast and reliable initialization capability.

 supports up to 50Hz data output to meet the needs of UAV dynamic applications.

 module can be flexibly configured as base station or mobile station.

 supports differential positioning and vector attitude measurement modes, which can output high-precision positioning and orientation results at the same time.

 is fully compatible with other automatic flight control systems such as Pixhawk and APM.

 Built-in four-arm spiral antenna combination, with light weight, high gain, high precision, anti-interference ability.

 Industrial grade low noise RF circuit, strong anti-multipath suppression.
