Key Takeaway
- RTC modules help track time accurately in projects.
- Use libraries like the DS3231 for easy integration.
- Follow clear steps to install and verify your RTC setup.
Installing a Real-Time Clock (RTC) in projects requires a clear grasp of the steps and tools involved. For both Arduino and Raspberry Pi users, following the right procedures is key to achieving precise timekeeping. This guide will walk through the installation process and share helpful tips to make everything easier. With the right approach, anyone can enhance their projects and ensure they run seamlessly. So, for those interested in getting started, keep reading for practical insights that will lead to successful RTC integration.

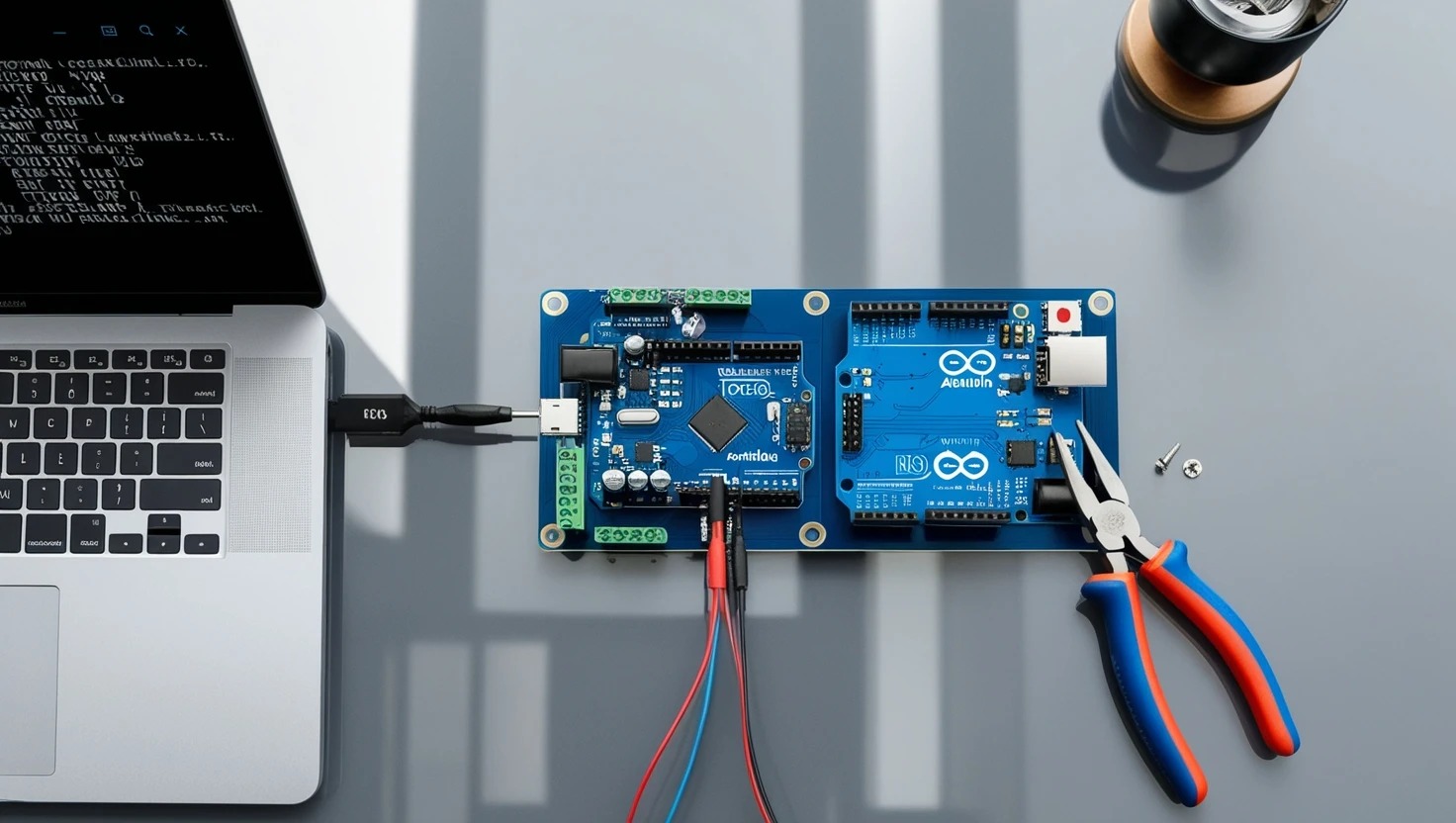

RTC Module Overview
Credits: Muhammad Ansar
The RTC module, such as the DS3231, is a practical device that tracks the current time and date, even when power is off, thanks to a coin cell battery. This feature makes it ideal for projects that need accurate timekeeping, like digital clocks, timers, or alarm systems.
Using an RTC module can significantly boost projects that rely on knowing the time. When the power goes out, the module retains the time, eliminating the need for resets. This is particularly beneficial for long-term projects where keeping the correct time is vital.
Setting up an RTC module requires careful connections. Most RTC modules use the I2C bus, a straightforward communication method using just two wires. On Arduino boards, I2C pins are typically A4 and A5. This simplicity allows for easy data exchange between the RTC and the main board, enabling the project to access the current time whenever necessary.
Installing the RTC Module
Installing the RTC module in a project involves a few straightforward steps. First, it’s helpful to gather all the necessary components: the RTC module itself, either an Arduino or a Raspberry Pi, and some jumper wires for the connections. Having everything ready upfront makes the setup process quicker and easier. (1)
Next comes the connection part. Users will connect the RTC module to their board using the I2C pins. Here’s the simple connection process:
- Connect the VCC pin on the RTC to the 5V pin on the Arduino or Raspberry Pi. This supplies power to the module.
- Connect the GND pin to the ground to complete the circuit and ensure a stable power supply.
- Connect the SDA pin to A4 on the Arduino or the SDA pin on the Raspberry Pi. This pin is used for data exchange with the RTC.
- Connect the SCL pin to A5 on the Arduino or the SCL pin on the Raspberry Pi. This pin helps manage the timing of the communication.
Once these connections are made, the RTC module can communicate effectively with the main board. This setup allows projects to access the current time and date easily, which is important for many applications. Following these steps will lead to a successful installation and smooth operation of the RTC module in any project.
Installing the Library
Next, it’s crucial to install the correct library for the RTC module. The DS3231 library is a popular option that makes working with the RTC much easier. It lets users set the time, read the current date, and access various features of the module quickly. (2)
To install the library, follow these simple steps:
- Open the Arduino IDE on your computer. This is where the code will be written and uploaded.
- In the top menu, click on Sketch. Then go to Include Library and select Manage Libraries. This opens the Library Manager, where a variety of libraries can be found.
- In the Library Manager, there’s a search box. Type “DS3231” to find the specific library needed. Once located, click the “Install” button next to it.
Once the library is installed, it becomes a part of the Arduino IDE. Users can easily include it in their code whenever they want to work with the RTC. By using this library, users can skip writing complicated code from scratch and focus on getting their projects running smoothly and quickly.
Writing the Code
After installing the library, the next step is to write some straightforward code, often called a sketch, to get the RTC up and running. Here’s a simple guide:
- Open a new sketch in the Arduino IDE. This creates a blank space for writing the code.
At the top of the sketch, include the necessary libraries. Add these lines:
#include <Wire.h>
#include <DS3231.h>
- The Wire.h library handles I2C communication, while DS3231.h provides access to the RTC features.
Create an RTC object for use in the code by adding the line:
DS3231 rtc;
In the void setup() function, initialize the RTC to prepare it for use. Add this code:
void setup() {
Wire.begin();
rtc.begin();
}
- The Wire.begin() command starts the I2C communication, and rtc.begin() gets the RTC module ready.
If this is the first time running the code, set the time on the RTC with this line:
rtc.setTime(12, 0, 0); // Set to 12:00:00
This line sets the RTC time to 12:00 PM. After writing this code, users can upload it to the Arduino. Once the upload is finished, the RTC will accurately keep time. This simple code helps users become familiar with the RTC and how to interact with it effectively.
Reading Time
To read the time from the RTC, users need to add some simple code to the loop() function. This code will continuously fetch the current time and display it. Here’s how to do it:
void loop() {
Serial.print(“Current Time: “);
Serial.print(rtc.getHours());
Serial.print(“:”);
Serial.print(rtc.getMinutes());
Serial.print(“:”);
Serial.println(rtc.getSeconds());
delay(1000); // Wait for 1 second
}
In this code, the Serial.print statements work together to show the current time. It starts by printing “Current Time:” to inform the user about what’s being displayed. Then, it retrieves the hours from the RTC using rtc.getHours(), the minutes with rtc.getMinutes(), and the seconds with rtc.getSeconds(). Each of these values is printed, separated by colons.
The delay(1000); line tells the program to pause for one second before repeating the loop. This means the time updates every second on the Serial Monitor. For beginners, seeing the time change can be exciting. It confirms that the RTC is functioning correctly and keeping accurate time.
Verifying the Installation
After writing the code, the next step is to upload it to the Arduino. This is straightforward; users just need to click the upload button in the Arduino IDE. Once the code is uploaded, it’s time to check if everything is working correctly.
To view the output, users should open the Serial Monitor. This can be done by clicking the magnifying glass icon in the top right corner of the Arduino IDE. The Serial Monitor will pop up in a new window, displaying the messages sent from the Arduino.
In this window, users should see the current time updating every second. If the time displays correctly, the RTC is set up and functioning well. If the time does not appear, users should pause and troubleshoot.
First, checking the connections is crucial. Users should ensure all wires are connected properly and securely. It’s also important to verify that the library is installed correctly. If issues persist, restarting the Arduino IDE can sometimes resolve the problem. By carefully verifying each step, users can more easily identify and fix any issues. This process not only helps troubleshoot but also allows users to learn more about their setup and boost their confidence in their projects.
Setting the Alarm
The RTC module comes with a handy feature that allows users to set alarms, making it a fun addition for projects that need to alert users at specific times. To set an alarm, users should follow these steps in the code:
First, set the alarm time in the setup() function. This can be done with the following code:
rtc.setAlarm1(0, 0, 30, DS3231_A1_Hour); // Alarm at 12:00:30
rtc.alarmInterrupt(1, true); // Enable alarm interrupt
- In this code, the setAlarm1 function defines the alarm, with the first three numbers representing hours, minutes, and seconds. In this example, the alarm is set for 12:00:30. The alarmInterrupt function enables the alarm interrupt, allowing the program to react when the alarm goes off. That means when the time reaches 12:00:30, the program can take action.
Next, it’s important to check for the alarm in the loop() function. The code for this looks like:
if (rtc.alarmFired(1)) {
Serial.println(“Alarm 1 triggered!”);
rtc.clearAlarm(1);
}
- Here, the program checks if the alarm has fired. If it has, a message saying “Alarm 1 triggered!” will pop up in the Serial Monitor. The clearAlarm function resets the alarm so it can be set again. This loop runs continuously, checking every second if the alarm should go off.
By setting up alarms this way, users can create projects that notify them at specific times. This feature enhances the RTC module’s versatility for various applications, such as reminders or alerts.
Using RTC with Raspberry Pi
For Raspberry Pi users, setting up the RTC module is a bit different than with an Arduino. Here’s a straightforward guide to get started:
- Connect the RTC module using the I2C pins, similar to the Arduino setup. Making these connections correctly is essential for effective communication between the module and the Raspberry Pi.
Open a terminal window on the Raspberry Pi. This is where users will enter commands to install the necessary tools. To install the I2C tools, type the following command:
sudo apt-get install i2c-tools
- This command installs the I2C tools, which help manage the connections with the RTC.
Next, enable I2C on the Raspberry Pi by running:
sudo raspi-config
- After entering this command, a configuration menu will appear. Users should navigate to Interfacing Options, select I2C, and enable it. This step is crucial for ensuring that the Raspberry Pi can communicate properly with the RTC module.
Finally, check if the RTC is detected by using the command:
sudo i2cdetect -y 1
- This command scans for devices connected to the I2C bus. If everything is set up correctly, the terminal will display the RTC’s address. If it doesn’t show up, users may need to double-check their connections or settings.
By following these steps, Raspberry Pi users can successfully set up the RTC module. This process enables accurate timekeeping and opens the door to various projects that rely on time-based functions.
Setting Time on Raspberry Pi
To set the time on a Raspberry Pi, users can easily run a simple command in the terminal:
sudo hwclock -w
This command writes the system time to the RTC module, ensuring that it has the accurate current time. This step is crucial for maintaining precise timekeeping. After running this command, the RTC module will update its time to match the system clock. This procedure is particularly helpful when setting up the Raspberry Pi for the first time or when adjustments to the time are necessary.
To verify that the RTC is keeping the correct time, users can check the time by entering the following command:
sudo hwclock -r
This command retrieves the current time from the RTC module and displays it in the terminal. By executing this command, users can confirm whether the RTC is functioning correctly and maintaining the right time. It’s a good idea to check the RTC after setting the time to ensure everything is operating as expected.
Setting and checking the time on the Raspberry Pi is a straightforward process. Following these simple commands helps ensure accurate timekeeping for projects and applications that depend on the RTC.
Troubleshooting Common Issues
If the RTC module isn’t working as expected, there are several common issues users can check. Here are some helpful tips:
- Check Connections: The first step is to ensure that the wiring is correct and secure. Loose or incorrect connections can lead to malfunctions. Users should double-check that all pins are securely connected to the right spots on both the Raspberry Pi and the RTC module.
- Power Supply: It’s important to confirm that the RTC module has a backup battery installed. Many RTC modules require a battery to keep track of time when the power is off. Without a battery, the module might reset every time the power cuts off, losing its time settings.
- Library Installation: Users should verify that the appropriate library is installed and properly included in the code. If the library is missing or not set up correctly, the Raspberry Pi may struggle to communicate with the RTC. It’s best to review the installation steps to ensure everything is in place.
- I2C Configuration: Make sure that I2C is enabled on the Raspberry Pi. If I2C isn’t activated, the RTC won’t be detected. Users can enable I2C through the Raspberry Pi configuration menu.
By checking these areas, users can address many of the common problems that crop up during installation. Troubleshooting is a vital part of working with electronics. Taking a moment to ensure everything is set up correctly can save users a lot of frustration and help make sure the RTC module runs smoothly.
FAQs
How do I connect an RTC module like DS3231 or DS1302 to my Arduino Uno project?
To connect an RTC module to your Arduino, you’ll use the i2c bus on pins A4 and A5. Start by installing the necessary Arduino library through the library manager. Then, in your code, you’ll initialize the RTC module and set the current time using the void setup() function.
What are the basic steps to install and configure an RTC module on a Raspberry Pi project?
First, use sudo apt to install the required i2c tools. Then, edit your config file with sudo nano to enable i2c support. Next, connect the RTC module to the Raspberry Pi’s i2c bus. Finally, write some code to read the current time data from the real time clock.
How do I use the Serial Monitor to verify my Arduino RTC module is working correctly?
After wiring up the RTC and installing the library, you can print the current date, time, and other details to the Serial Monitor. This allows you to check if the RTC is properly communicating and keeping accurate time. You can also set alarms or triggers based on the real time clock.
What’s the best way to handle low power scenarios with an RTC module in my project?
RTC modules often have a backup battery, typically a coin cell, that keeps the clock running even when the main power is off. This ensures your system maintains accurate timekeeping, even during power cuts. The low power mode helps conserve energy when your project is in a low activity state.
How do I transfer my Arduino project with an RTC module to a new development board?
When moving your code to a new Arduino Uno or similar board, you’ll need to re-install the RTC library and re-configure the i2c connections. Make sure to set the current time correctly, either from the hardware clock or by syncing with an internet time source. Verify everything is working on the new board.
What’s the best way to manage version control and collaboration on an Arduino project with an RTC module?
Using a tool like Rational Team Concert, you can efficiently manage your source code, track changes, and collaborate with team members. The Team Artifacts view helps organize all project files, including your Arduino code and any RTC-related libraries. This ensures everyone on the team has access to the latest version.
How do I use the RTC module to trigger alarms or schedule events in my Arduino project?
The RTC module allows you to set alarms based on the current time, day of the week, or other timekeeping criteria. In your code, you can use the alarm interrupt feature to trigger specific actions when the alarm time is reached. This enables accurate timekeeping and event scheduling in your digital clock or home automation projects.
What are some advanced features and use cases for RTC modules in Arduino and Raspberry Pi projects?
Beyond just keeping the current time, RTC modules can provide features like square wave output, temperature sensing, and battery-backed timekeeping. These capabilities allow you to build highly accurate digital clocks, event loggers, and other projects requiring reliable real-time data and timing. RTC modules are a versatile tool for a wide range of maker projects.
Conclusion
Setting up an RTC in projects is simple when users have the right tools and information. By following the outlined steps, they can achieve accurate timekeeping for their Arduino or Raspberry Pi projects. This functionality enhances various applications, allowing for more reliable and time-sensitive operations. With the ability to track time consistently, users can focus on creating and expanding their projects effectively.
