Connecting RTC Modules: A Simple Guide for Arduino

Key Takeaway

  • RTC modules like DS3231 and DS1307 keep track of time using the I2C bus.
  • They require simple wiring to connect to an Arduino board.
  • Using specific libraries helps in reading and setting the time easily.

Connecting RTC modules can be simple and straightforward. This guide covers popular options like the DS3231 and DS1307, which are essential for keeping accurate time in various electronics projects. Setting them up is easier than it seems. Readers can expect a clear step-by-step process, helpful tips, and handy code examples to make the setup smooth. Whether it’s for a DIY project or a learning experience, these modules can make a difference. Curious about how to get started? Keep reading to discover everything needed for a successful setup.

Connecting the DS3231 RTC Module

Credits: Maker Tutor

Connecting the DS3231 RTC module is easy when following these clear steps. (1)

  1. Hardware Requirements:

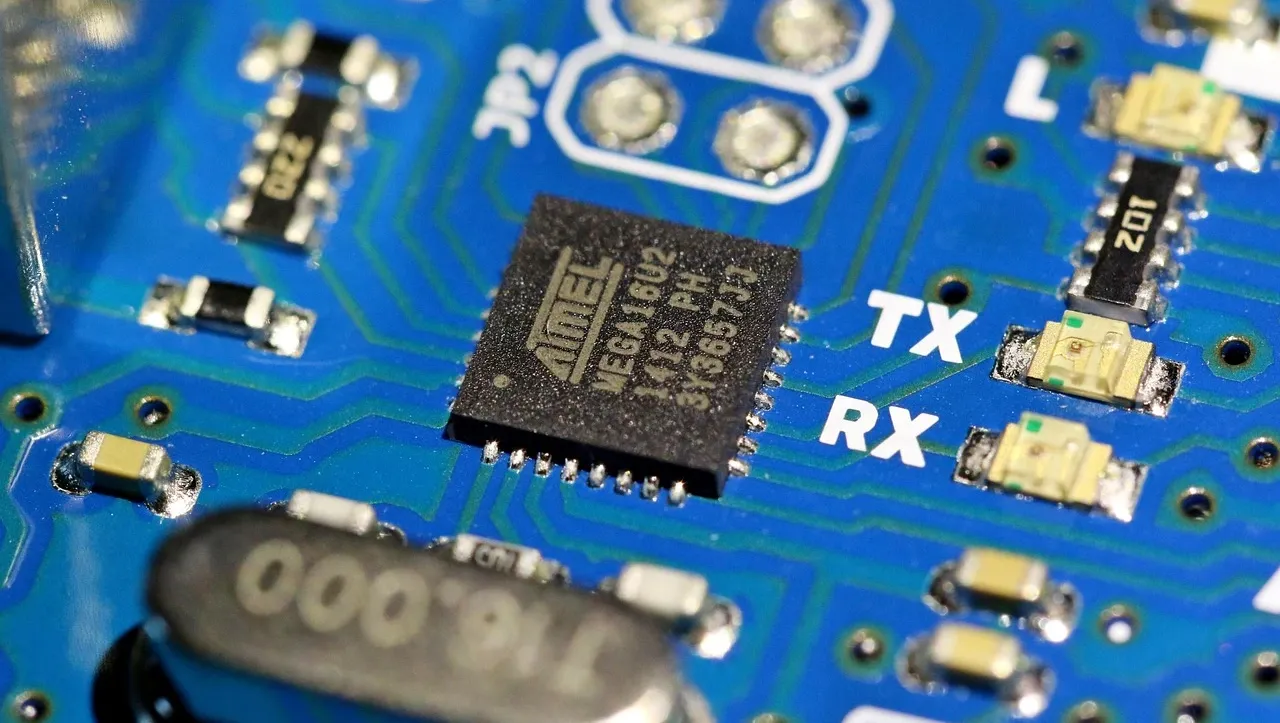

    • Start with an Arduino board, like the Arduino Nano or Uno.
    • Next, get a DS3231 RTC module, which keeps time accurately.
    • Jumper wires are needed to link the module to the Arduino.
    • For a tidy setup, a breadboard can help organize the connections.
  2. Wiring Instructions:
    • Connect the VCC pin of the DS3231 to the 5V pin on the Arduino to provide power.
    • Connect the GND pin of the DS3231 to the GND pin on the Arduino to complete the circuit.
    • Link the SDA pin of the DS3231 to the A4 pin on the Arduino for data communication.
    • Finally, connect the SCL pin of the DS3231 to the A5 pin on the Arduino for clock signals.
  3. I2C Address:
    • The DS3231 uses the I2C address 0x68, which lets the Arduino communicate with the RTC module. This address tells the Arduino where to send and receive time data.
  4. Code Example: Here’s a simple code snippet to get started with the DS3231:

#include <Wire.h>

#include <RTClib.h>

RTC DS3231 rtc;

void setup() {

  Serial.begin(9600);

  if (!rtc.begin()) {

    Serial.println(“Couldn’t find RTC”);

    while (1);

  }

}

void loop() {

  DateTime now = rtc.now();

  Serial.print(now.year(), DEC);

  Serial.print(‘/’);

  Serial.print(now.month(), DEC);

  Serial.print(‘/’);

  Serial.print(now.day(), DEC);

  Serial.print(” “);

  Serial.print(now.hour(), DEC);

  Serial.print(‘:’);

  Serial.print(now.minute(), DEC);

  Serial.print(‘:’);

  Serial.print(now.second(), DEC);

  Serial.println();

  delay(1000);

}

This code allows the Arduino to read the current time from the DS3231. It checks if the RTC is connected. If not, it displays an error message. Every second, it retrieves the date and time, showing this information on the Serial Monitor.

Connecting the DS1307 RTC Module

Connecting the DS1307 RTC module is similar to connecting the DS3231 but has some small differences. (2)

  1. Hardware Requirements:
    • Begin with an Arduino board, such as the Arduino Uno or Nano.
    • Next, get a DS1307 RTC module, which is another reliable option for accurate timekeeping.
    • Jumper wires are needed to connect the module to the Arduino.
    • A breadboard can help keep things organized, but it’s optional.
    • Remember to include a CR2032 battery for backup power, which ensures the module keeps time even when the main power is off.
  2. Wiring Instructions:
    • First, connect the VCC pin of the DS1307 to the 5V pin on the Arduino to provide power.
    • Then, connect the GND pin of the DS1307 to the ground pin, completing the circuit.
    • Now, link the SDA pin of the DS1307 to the Arduino’s A4 pin for data communication.
    • Finally, connect the SCL pin of the DS1307 to the A5 pin on the Arduino for the clock signal.
  3. I2C Address:
    • The DS1307 uses the same I2C address of 0x68. This address is important for communication, just as it is with the DS3231.
  4. Code Example: Here’s a simple code snippet for the DS1307:

#include <Wire.h>

#include <DS1307RTC.h>

void setup() {

  Serial.begin(9600);

  if (!RTC.begin()) {

    Serial.println(“Couldn’t find RTC”);

    while (1);

  }

}

void loop() {

  tmElements_t tm;

  if (RTC.read(tm)) {

    Serial.print(tm.Year + 1970); // Year

    Serial.print(‘/’);

    Serial.print(tm.Month); // Month

    Serial.print(‘/’);

    Serial.print(tm.Day); // Day

    Serial.print(” “);

    Serial.print(tm.Hour); // Hour

    Serial.print(‘:’);

    Serial.print(tm.Minute); // Minute

    Serial.print(‘:’);

    Serial.print(tm.Second); // Second

    Serial.println();

  }

  delay(1000);

}

This code initializes the DS1307 and checks for proper functionality. If the connection is successful, it reads the current date and time every second, displaying the information on the Serial Monitor.

Both the DS3231 and DS1307 modules are user-friendly when connected and coded correctly. They can keep accurate time for any project with just a few easy steps.

General Facts about RTC Modules

Understanding RTC modules is important for many electronics projects. Here are some essential points to clarify their purpose and use:

  1. Purpose: RTC modules track the current time and date accurately. This feature is crucial for various applications. For instance, they can be found in clocks that display the correct time, in timers that measure duration, and in alarms that notify users at specific times. They also play a key role in data logging projects, ensuring that each recorded piece of data has a reliable timestamp.
  2. Communication Protocol: Most RTC modules use the I2C protocol for communication. This method is efficient because it only requires two wires to connect multiple devices: one wire for data (SDA) and another for the clock signal (SCL). This simplicity makes it easy to add extra devices to the same setup without needing many additional connections. Along with power and ground wires, the I2C protocol makes wiring straightforward for both beginners and experienced users.
  3. Power Supply: RTC modules normally operate at 5V, which is standard for many electronic projects. Most include a backup battery, such as a CR2032, ensuring that the RTC keeps time even if the main power is off. This feature is especially helpful in devices that aren’t constantly powered on. When the power is restored, the RTC can continue to keep accurate time without losing any information.

Specific RTC Module Connections

DS3231 RTC Module

  • Connections:
    • VCC: This pin connects to the 5V output on the Arduino, providing the necessary power for the RTC to work properly.
    • GND: Connect this pin to ground on the Arduino. It helps complete the power circuit, creating a common reference point for the RTC.
    • SDA: This pin connects to the SDA pin, which is usually A4 on the Arduino Nano. The SDA line is used for sending and receiving data between the RTC and the Arduino.
    • SCL: Link the SCL pin to the SCL pin, typically A5 on the Arduino Nano. The SCL pin carries the clock signal, syncing data transfers.
  • I2C Address: The DS3231 has a fixed I2C address of 0x68. This address is key for communication, allowing the Arduino to interact with the RTC module. By using this particular address, the Arduino knows where to send commands and find the data it needs.
  • Onboard EEPROM: The DS3231 features a 32-byte EEPROM (AT24C32) for additional data storage. This EEPROM shares the I2C bus with the RTC and uses the address 0x57. This capability lets users store small amounts of data directly on the module, which can be handy for saving settings or logs even when the device is off.

DS1307 RTC Module

  • Connections:
    • VCC: This pin connects to the 5V output on the Arduino, just like with the DS3231. This ensures the module gets the power it needs.
    • GND: Connect the GND pin to ground on the Arduino, which is essential for the RTC to function properly.
    • SDA: The SDA pin connects to the Arduino’s A4 pin for data transmission, allowing the RTC to send its time data to the Arduino.
    • SCL: Connect the SCL pin to the Arduino’s A5 pin. This pin provides the clock signal, necessary for timing data transfers.
  • I2C Address: The DS1307 also uses the I2C address 0x68, just like the DS3231. This consistency helps establish smooth communication between the Arduino and the RTC module.
  • Onboard EEPROM: The DS1307 includes an onboard EEPROM with an address range from 0x50 to 0x57. This feature increases storage options, making it useful for saving settings or logs. Having data storage right on the RTC module reduces the need for extra components, simplifying circuit design.

These insights into RTC modules and their connections lay a solid groundwork for effectively using them in various electronics projects.

Wiring Considerations

Wiring is an important aspect of working with RTC modules and can significantly impact their performance. Here are some key points to consider:

  • Pull-up Resistors: The SDA and SCL lines usually require pull-up resistors to maintain proper signal levels on the I2C bus. These resistors typically have a value of around 4.7k ohms. They connect the I2C lines to power, helping to keep a high signal when no device is pulling the line low. Without pull-up resistors, signals may weaken, leading to unreliable communication between the RTC module and the Arduino. This small addition can noticeably enhance a project’s performance.
  • Pin Mapping Variations: Different Arduino models have varying pin mappings for I2C connections. For instance, on an Arduino Uno or Nano, the SDA pin is A4, and the SCL pin is A5. However, on an Arduino Mega, the SDA and SCL pins are located on pins 20 and 21. Knowing the correct pins for the specific board being used is crucial to avoid connection problems. Incorrect connections can result in issues, such as failing to read the time from the RTC module. Always refer to the documentation for the specific Arduino board to ensure a proper setup.

Example Code Snippets

Using libraries like RTClib for the DS3231 and DS1307RTC for the DS1307 makes working with these RTC modules much simpler. These libraries come with ready-made functions that help with common tasks, such as initializing the module, setting the time, and reading the current time values.

Sample Code for DS3231

Here is a straightforward code snippet for the DS3231 RTC module:

#include <Wire.h>

#include <RTClib.h>

RTC_DS3231 rtc;

void setup() {

  Serial.begin(9600);

  rtc.begin();

}

void loop() {

  DateTime now = rtc.now();

  Serial.print(now.year(), DEC);

  Serial.print(‘/’);

  Serial.print(now.month(), DEC);

  Serial.print(‘/’);

  Serial.print(now.day(), DEC);

  Serial.println();

  delay(1000);

}

This code initializes the RTC module and starts communication with it. In each loop, the code reads the current date and time from the RTC and prints it to the Serial Monitor. The delay(1000); at the end makes the program pause for one second before repeating, creating a clear output of the current time.

Sample Code for DS1307

Here’s a simple code example for the DS1307 RTC module:

#include <Wire.h>

#include <DS1307RTC.h>

void setup() {

  Serial.begin(9600);

  RTC.begin();

}

void loop() {

  tmElements_t tm;

  if (RTC.read(tm)) {

    Serial.print(tm.Year + 1970);

    Serial.print(‘/’);

    Serial.print(tm.Month);

    Serial.print(‘/’);

    Serial.print(tm.Day);

    Serial.println();

  }

  delay(1000);

}

In this example, the code initializes the DS1307 RTC module. Every second, it reads the current time and displays it on the Serial Monitor. The tmElements_t structure holds time components such as the year, month, and day, while the code adds 1970 to the year since the RTC returns it as the number of years since 1970.

These code snippets offer a great starting point for anyone interested in using RTC modules in their projects. They clearly show how easy it is to add timekeeping features to Arduino projects with the right setup and code.

FAQs

How do I physically connect an RTC module like the DS3231 to my Arduino board?

To connect the DS3231 RTC module to your Arduino, you’ll need to wire the clock pin, data pin, GND pin, and power supply. This allows the i2c interface to communicate with the RTC’s crystal oscillator and keep accurate timekeeping even when the main power is interrupted.

What are the key steps for installing and setting up an RTC module on my Arduino?

First, add the required RTC library to your Arduino IDE. Then, initialize the RTC module using the i2c address and external 32khz crystal if needed. You’ll also want to check if the RTC has a backup supply like a coin cell battery for keeping time when the main power is off.

How can I read the current date and time from my Arduino’s connected RTC module?

Use the RTC library’s functions to retrieve the current hours, minutes, seconds, day, date, and year from the i2c interface. This allows your Arduino code to access the real-time clock data and perform time-based operations, like data logging to a microSD card.

What if my RTC module isn’t being detected by the Arduino’s i2c bus?

First, ensure the module pinout is wired correctly to the Arduino’s i2c pins (A4 and A5). You can also try scanning the i2c bus with the Wire.available() function to detect the fixed i2c address of the RTC chip. If it still doesn’t work, the module may need an external 32khz crystal or backup battery.

How do I set the time on my Arduino’s RTC module, and how do I handle leap years?

Use the RTC library’s functions to manually set the current date and time, including the day of the week. For leap year handling, the DS3231 RTC module has built-in logic to automatically account for leap years, making it easier to keep accurate timekeeping.

Can I connect multiple RTC modules to a single Arduino board using the i2c bus?

Yes, you can connect several RTC modules, like DS3231 and AT24C32 EEPROM, to the same i2c bus on your Arduino. Just make sure each module has a unique i2c address so the Arduino can communicate with them individually through the i2c interface.

How can I use an Arduino’s RTC module to timestamp sensor data or log it to a microSD card?

By accessing the RTC module’s current date and time, you can add timestamps to sensor readings or log data with accurate timekeeping. This is especially useful for long-term data collection projects where you need to keep track of when measurements were taken, even if the main power is interrupted.

What are some common applications for using an RTC module with an Arduino board?

RTC modules are great for adding accurate timekeeping and date tracking to Arduino projects, like digital clocks, data loggers, and event triggers. They can maintain the correct time even when the main power is cut, using a backup supply like a coin cell battery or 3V lithium battery.

Conclusion

Connecting RTC modules like the DS3231 and DS1307 to an Arduino is simple. By following the wiring and coding instructions provided, anyone can track time accurately in their projects. Whether used for data logging or building clocks, these modules serve as valuable resources for electronics enthusiasts. They enhance projects by adding reliable timekeeping functionality that is easy to implement and beneficial in numerous applications.

References

  1. https://howtomechatronics.com/tutorials/arduino/arduino-ds3231-real-time-clock-tutorial/
  2. https://lastminuteengineers.com/ds1307-rtc-arduino-tutorial/
