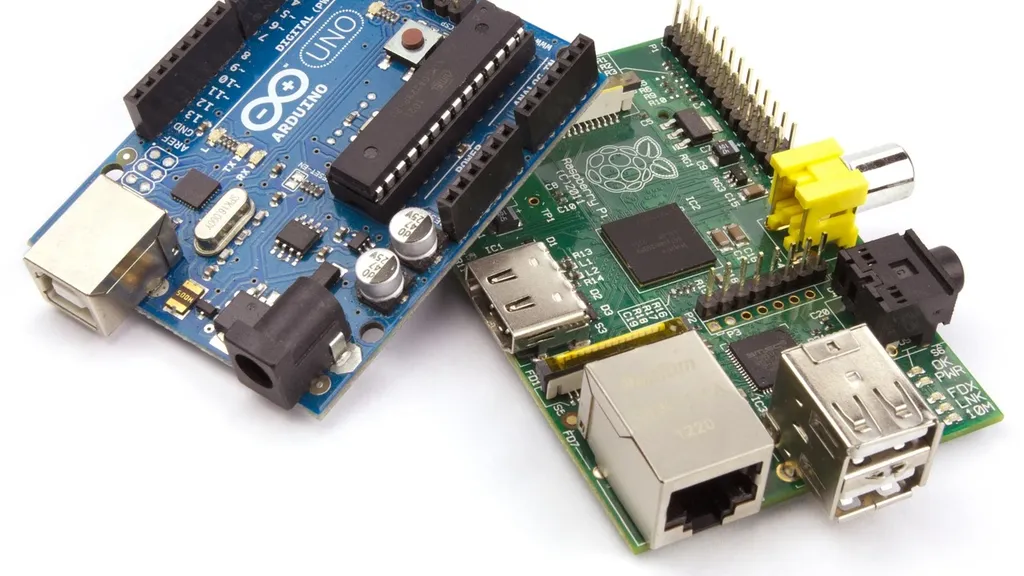

Advanced Raspberry Pi RTC Applications: Enhance Your Projects

Advanced Raspberry Pi RTC applications can greatly enhance projects that require accurate timekeeping, even during power outages. Real-Time Clock (RTC) modules, such as the DS3231, offer dependable timekeeping features for many uses. These modules can improve projects like data logging, scheduling tasks, or running timers.

Knowing how to implement these modules effectively is important for success. Want to learn more about the best ways to use RTC modules with your Raspberry Pi? Keep reading to discover helpful tips and ideas!

Key Takeaway

  1. RTC modules maintain accurate time even when powered off, making them essential for time-sensitive projects.
  2. Programmable alarm functions allow for automation and improved power management.
  3. Integrating RTC with Raspberry Pi enhances data logging, monitoring, and synchronization capabilities.

Accurate Timekeeping with RTC Modules

Credits: Jeff Geerling

RTC modules, such as the DS3231, help keep time accurately. They work even when the Raspberry Pi is turned off because they have a battery backup. Why is this important? It matters for tasks like data logging.(1)

Timestamps are needed to check trends over time. For instance, when logging environmental data like temperature and humidity, the RTC module makes sure the information is correct. This accuracy helps users analyze data reliably later on.

Using an RTC module can make a big difference in projects that need precise timekeeping.

Alarm Functions for Automation

Many RTC modules come with programmable alarms. These alarms can trigger events at specific times. Here are some ways to use this feature:

  • Wake the Raspberry Pi: Users can set alarms to wake the Raspberry Pi from a low-power state.
  • Data Collection: With the wake-on-RTC function, systems can gather data without keeping the Raspberry Pi fully powered.
  • Smart Home Automation: This feature is useful in smart home systems and IoT devices. Users can automate tasks easily and save energy.

Using RTC modules helps users enhance timekeeping and automation in their projects. These tools make it easier to manage data and improve the functionality of Raspberry Pi systems.

Temperature Monitoring Capabilities

The DS3231 module includes a built-in temperature sensor. This feature is helpful for tracking temperature conditions in various projects, eliminating the need for extra sensors. For example, a remote monitoring system can use the DS3231 to provide accurate temperature readings without adding complexity. Additionally, monitoring the Raspberry Pi’s temperature helps keep it within safe limits, preventing overheating.

Power Management and Energy Efficiency

Using an RTC with power management can enhance energy efficiency in designs. Here’s how it works:

  • Wake-on-RTC Features: Raspberry Pi projects can enter low-power states and wake up only when needed. This is especially beneficial for battery-operated devices.
  • Set Alarms for Shutdowns: Users can program alarms to trigger shutdowns after a period of inactivity. This helps extend battery life.
  • Improved System Efficiency: By managing power effectively, users can boost the overall efficiency of their projects.

By taking advantage of these features, users can create smarter and more energy-efficient projects with their Raspberry Pi. This not only saves energy but also improves the performance of the devices.

Enhanced NTP Synchronization

The Raspberry Pi typically uses Network Time Protocol (NTP) to keep track of time when it’s online. However, adding a Real-Time Clock (RTC) improves timekeeping even further. Here’s how it works:

  • Reliable Backup: The RTC serves as a backup when the internet goes down. It keeps accurate time until the connection is restored.
  • Syncing Time: By syncing the system clock with the RTC during startup or at set intervals, overall time accuracy improves significantly.

This way, even if the internet is unavailable, the Raspberry Pi can still maintain the correct time.

Custom Applications and Projects

RTC modules are very flexible and can be used in a variety of projects. Here are some examples of how they can be beneficial:

  • Smart Home Automation: RTC alarms can control lights or appliances based on schedules, making your home smarter and more efficient.
  • Event Timers: Users can create timers that trigger actions at specific times. For instance, a timer could turn on a fan at 3 PM every day.
  • Data Logging: Combining an RTC with logging features helps track historical data. This is useful in fields like agriculture or weather monitoring.

With RTC modules, the possibilities for custom applications are endless. They enable users to create smarter systems that function effectively, even without an internet connection.

Implementing RTC on Raspberry Pi

Setting up an RTC module like the DS3231 on a Raspberry Pi is straightforward. Here’s a simple guide to get started:

  1. Connect the RTC Module: Use the I2C bus to connect the RTC module to the Raspberry Pi. Ensure it is connected correctly to the GPIO pins.
  2. Install Required Packages: Run the command sudo apt install i2c-tools to install the tools needed for I2C communication.
  3. Detect the RTC: Check if the RTC module is connected by running sudo i2cdetect -y 1. This command will show if the RTC is recognized on the I2C bus.
  4. Load the RTC Kernel Module: Use sudo modprobe rtc-ds3231 to load the appropriate module for the DS3231.
  5. Set the Time: Set the RTC time by using the command sudo hwclock –set –date=”YYYY-MM-DD HH:MM:SS”. Replace “YYYY-MM-DD HH:MM:SS” with the actual date and time.
  6. Synchronize Time: To ensure the system clock is correct, run sudo hwclock -s. This syncs the system time with the RTC.

By following these steps, users can easily implement an RTC module on their Raspberry Pi.

Monitoring and Troubleshooting

Keeping an eye on the RTC’s performance is important. Here are some tips for monitoring and troubleshooting:(2)

  • Check Time and Date: Use the command sudo hwclock to view the current date and time from the RTC.
  • Check the Battery: If there are issues, ensure the RTC battery is functioning. A dead battery can lead to timekeeping problems.
  • Review I2C Settings: Make sure the correct I2C settings are in place. Misconfigurations can cause communication issues.

By following these steps, users can effectively implement and monitor an RTC on their Raspberry Pi.

Conclusion

Integrating an RTC module with Raspberry Pi enables a range of advanced applications that enhance functionality and efficiency in various projects. From precise timekeeping in data logging to implementing wake-on-RTC features for energy management, these modules offer essential capabilities that expand what can be achieved with Raspberry Pi systems.

FAQ

What is the purpose of using a Raspberry Pi RTC module like the DS3231 RTC?

A Raspberry Pi RTC module, such as the DS3231 RTC, is essential for keeping track of the current date and time accurately, especially when there is no internet connection. It uses the I2C bus to communicate with the Raspberry Pi, allowing it to maintain the correct time even during power outages. The RTC battery ensures that timekeeping continues without interruption, making it ideal for projects that require reliable time data.

How do I install and configure I2C tools for my Raspberry Pi RTC?

To install and configure I2C tools for your Raspberry Pi RTC, you need to run the command sudo apt install i2c-tools in the terminal. After installation, use sudo i2cdetect -y 1 to detect your RTC module on the I2C bus. This process enables your Raspberry Pi to recognize and interact with the RTC module, ensuring it can set the time accurately when powered on.

Can I use GPIO pins to connect my RTC module to a Raspberry Pi?

Yes, you can use GPIO pins to connect your RTC module to a Raspberry Pi. The RTC modules typically connect via the I2C bus, utilizing specific GPIO pins for data and clock signals. Make sure to correctly wire the RTC module according to its specifications, ensuring a stable connection for accurate timekeeping and functionality.

How do I set the correct time on my Raspberry Pi using an RTC?

To set the correct time on your Raspberry Pi using an RTC, first ensure your system is connected to the internet. Use the command date to check the current system time and then write it to the RTC with sudo hwclock -w. This command updates the hardware clock with the system time, allowing your Raspberry Pi to maintain accurate time even without an internet connection.

What commands do I need to manage my Raspberry Pi’s real-time clock?

To manage your Raspberry Pi’s real-time clock (RTC), you can use several commands. Start by checking the current time with sudo hwclock -r. To set the time, use sudo hwclock -w after ensuring your system time is correct. You can also load the necessary kernel module with sudo modprobe rtc-ds1307 or sudo modprobe rtc-ds3231, depending on your RTC model.
